Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-V420
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty 3 Year Application Chemical, Commodity, Food, Machinery & Hardware, Medical, Chin Chin/cashew/nuts/grain/snack/potato Chips/food
Type Multi-Function Packaging Machine Voltage 220V
Driven Type Electric Packaging Material Plastic, Wood
High Light

automatic powder packing machine

,

automatic blister packing machine

Leave a Message
Product Description



HTL-V420 / V520 /V680 potato chips automatic multihead weigher packing machine





1. Main technical:
1. Colorful touch screen with stable transmitting PLC control to perform bag making, weighing, filling, sealing, code printing, and cutting automatically.
2. Independent compressed air control and electrical wire system control separately, low noise in running, stable performance.
3. Vacuum belt pulling system to feed film and make bags with no faults.
4. Double servo control system, precise positioning.
5. Easy to place the rewind rolls onto the machine
6. Set up and adjust parameters on touch screen to change bag size
7. Sealed structure design to prevent dust contamination
8. Multi computerized weighing heads to deliver correct weight.



Application:
The bagging machine is widely used for packing of products in shape of granules, stripes, slices such as candy, potato chips, jelly, and peanuts.

Main technical parameters:
Model
HTL-V420
Bag length
80-300mm(L)
Bag width
50-200mm(W)
Film width
420mm
Packaging speed
5-60bags/min
Measurement range
150-1200ml
Barometric pressure
0.65mpa
Consumption
0.3m³/min
Voltage
220V
Power
2.2KW
Dimensions(L*W*H)
1080mmx1300mmx1400mm
Weight
540Kg





Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty 0Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty 1



Detailed Images

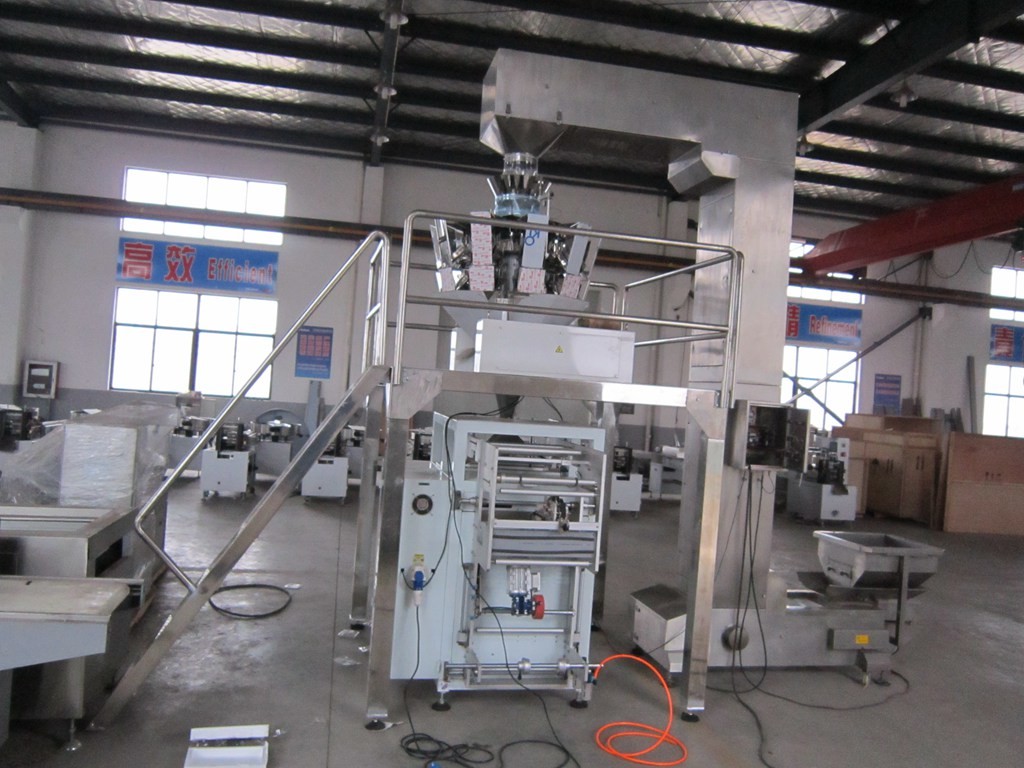

Photo of this machine:











Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty 2Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty 3Automatic Multihead Weigher Packing Machine For Potato Chips 3 Year Warranty 4
