Fully Intelligent Pastry Packaging Machine Three Servo Motor Optional
|Place of Origin||Jiangsu, China (Mainland)|
|Minimum Order Quantity||1 Set|
|Packaging Details||Wooden case packing according to your demand|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||30 Set/Sets per Month|
|Packing Speed||50-200bag/min||Making-bag Length||50-360mm|
|Making-bag Width||30-120mm||Making-bag Height||3-50mm|
|Motor Power||0.7/0.37KW||Heating Power||1.8KW|
automatic bag packing machine,
automatic powder packing machine

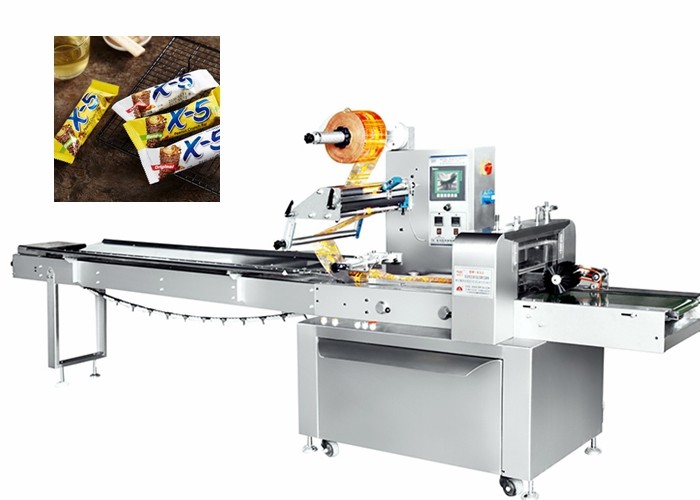

Fully Intelligent Three-Servo Flow Chocolate Packing Machine
Main Performance And Structure Features:
- Multi-function, various products and size available
- PLC Touch screen operation, easy to operate and understand
- High speed, connectable to various feeder line
- Three- servo motor for choice
- High sensitivity sensor, Durable sealing cutting blades
1. Full servo motor control, the bag length is set and cut, only the number of cutters for sealing is input, and the system can realize split knife operation.
2. Using 7-inch color LCD touch screen integrated control, simple and intuitive operation.
3. Regardless of whether the material supply is continuous or intermittent, under any circumstances, the system can automatically and accurately ensure uniform materials in each packing film, achieve material stoppage and stop film feeding, achieve zero empty package, and zero loss of packaging materials.
4. The material deviation or shift, the cutter stops, after the materials is discharged, the cutter automatically resumes operation.
5. The equipment will automatically connect the membrane without stopping the machine, which will save costs.
6. Intelligent modular temperature control more accurate temperature control.
7. High precision tracking.
8. the transmission is simple, the work is reliable, and the maintenance and operation of the equipment that has not been touched can be mastered in 5 minutes.
9. The whole machine is equipped with multiple security protection measures.
Automatic packing machine with film beneath-supply system is to wrap the products with irregular shapes and in bulk such as instant noodle, wet tissue paper, noodle, egg roll, soft candy, fruit, towel, and dry fruit.
Main Technical :
|Film width (mm)||Max. 350||Max. 450||Max. 550|
|Bag length (mm)||90~220 or 150~320||130~360||180~440|
|Bag width (mm)||50~170||50~260||50~260|
|Product height (mm)||Max. 40||Max. 50||Max. 100|
|Rewind diameter (mm)||Max. 350||Max. 450||Max. 550|
|Packing speed (bags/min)||50~250||40~200||30~200|
|Machine dimension (L*W*H) (mm)||4200*1250*1750|
|Total weight (kg)||1000|
1.Date coding printer, 2.Air-filling device, 3.Punching device
4.Double frequency converter controller / servo motor for choice
The Flow Pack Machine widely applied for various kinds of regular objects like Food, Vegetables, Fruits, Medicine, Daily Appliances, Cosmetic, Metals, Industrial Parts, Boxes, Trays, Toys and etc.
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
