Stainless Steel Chocolate Bar Production Line Durable 13160*700*1500mm

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification ISO9001
Model Number HTL-T400
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details suitable packing method
Delivery Time 60 work day(s) after payment received
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Belt Width 400 Mm Tunnel Length 10 M
Tunnel Temperature 2-10 ℃ Belt Speed 1-6 M/min
Dimension(L*W*H) 13160*700*1500mm Machine Material Stainless Steel
Weight 1800kg Application Chocolate,CANDY,Chocolate Production Line
High Light

chocolate processing equipment

,

chocolate bar making machine

Leave a Message
Product Description

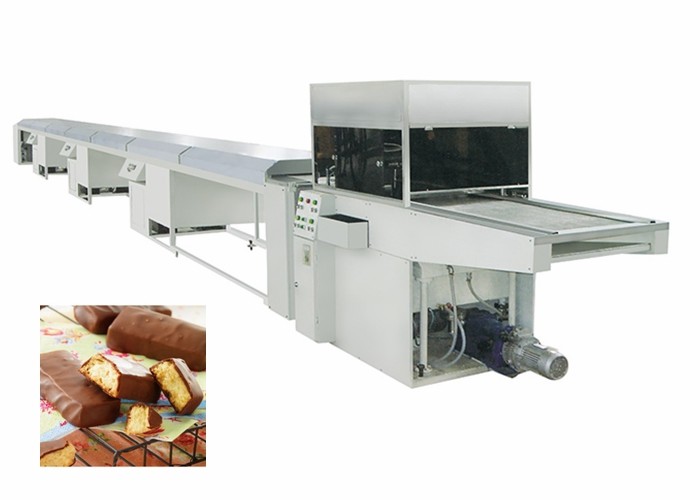

Small chocolate enrobing machine bakery used chocolate enrober









Characteristics



The machine uses dipping way to coat chocolate. The stainless steel netbet mechanically runs smoothy.



Main specifications



type HTL-T400 HTL-T600 HTL-T900 HTL-T1200
belt width(mm) 400 600 900 1200
belt speed(m/min) 1-6 1-6 1-6 1-6
supporting refrigeration unit 2 3 4 5
tunnel length(m) 10 14 18 22
tunnel temperature(℃) 2-10 2-10 2-10 2-10
total power(kw) 16 16.5 22.87 28.5
weight (kg) 1800 2300 3200 4050
dimension (L*W*H)mm 13160*700*1500 18500*950*1800 21500*1200*1800 2550*1450*1800





HTL- Chocolate Butter Melting Tank



Stainless Steel Chocolate Bar Production Line Durable 13160*700*1500mm 0



USE:



The chocolate butter melting tank is used for melting the cocoa butter. This chocolate machine could be heated by the electrical immersion heater or steam. The tank wears hot-water jacket.



Technical Parameter:



Capacity 500 L
Motor power 12 kw
Shape rectangle or cylinder
Material inner :stainless steel, outer: mild steel
Outside dimension 1220*850*1050 mm



Note: We can make melter of Capacity from 100kg~1000kg according to customer's demand.

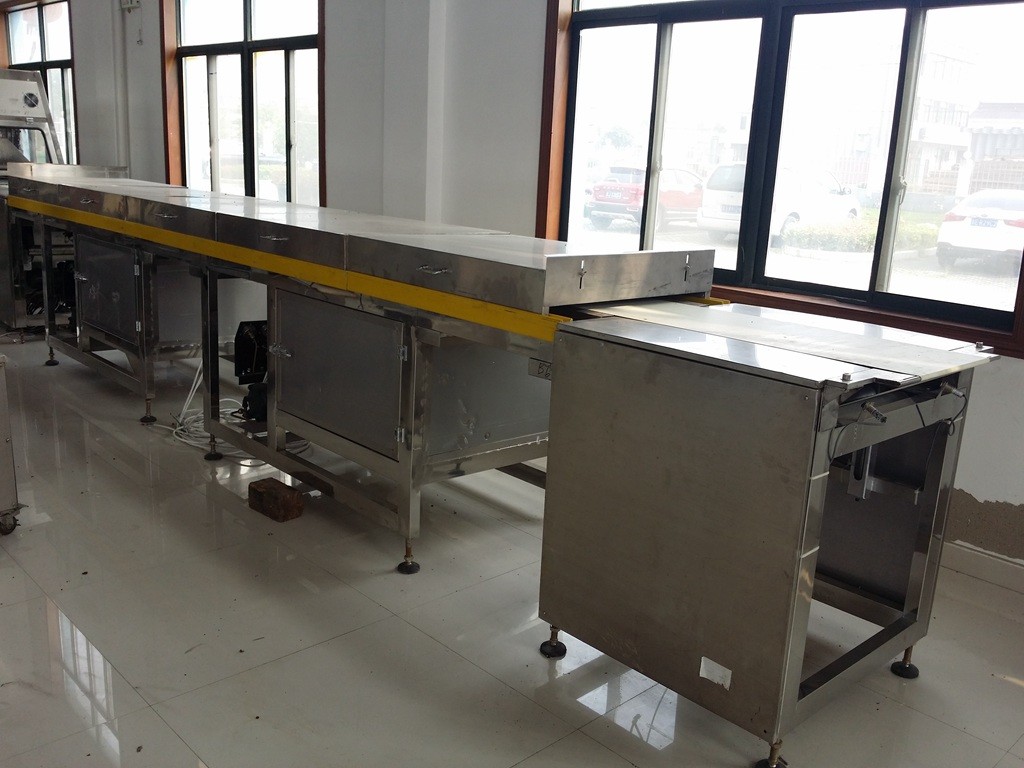

Chocolate enrobing machine
Stainless Steel Chocolate Bar Production Line Durable 13160*700*1500mm 1

Belt width 400 mm
Transmission on belt speed 0-7 m/in (Continuously variable type speed adjustment)
Supporting refrigeration unit 2
Tunnel length 10 m
Tunnel temperature 2-10 ℃
Supporting power 16 kw
Machine weight 1800 kg







Chocolate Double Jacketed Pump

Stainless Steel Chocolate Bar Production Line Durable 13160*700*1500mm 2



USE:



The chocolate paste feeding pump is used for convey and lift chocolate paste.

The pump wear warm-water jacket with temperature control automatically by electric heater.



Main parameter:



Motor power 1.5 kw
Flow rate 35 L/min
Delivery lift 8 m
Weight 80kg
Outside dimension 780*390*350mm
Packing size

1130*510*660mm



Our Services


Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.

After-sale

1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
