Large Capacity Chocolate Bar Moulding Machine / Chocolate Candy Depositing Line

Place of Origin	Jiangsu, China (Mainland)
Brand Name	Haitel
Certification	CE ISO9001
Model Number	HTL-T1 2 3
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging Details	Wooden case packing according to your demand
Delivery Time	Shipped in 45 work days after payment
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15 Piece/Pieces per Month

Product Details

Certification	CE, ISO9001：2008	Warranty	1 Year
Depositing Speed	10-18 N/min	Power	21kw
Cooling Capacity	21800 Kcal/H	Chocolate Weight	Pure:2.5-512g Center Filled:15-40%
High Light	chocolate processing equipment , chocolate bar making machine

Leave a Message

Product Description

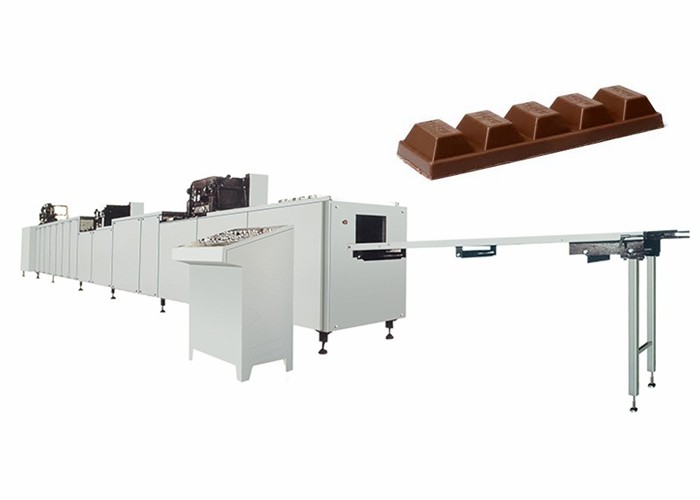

Automatic chocolate bar moulding machine / chocolate candy depositing line

Application:

The chocolate depositing production line contains mould pre-heating, depositing, vibrating which performing automatically. Depositing is able to do many types of chocolates, like double colors, center filling, nut inclusion and more.

Major Technical Data:

Models	1	2
Capacity (kg/8h)	800-2500	800-2500
Speed (time/min)	10-18	10-18
Chocolate shape	Mould shapes as per customer’s requirement	Mould shapes as per customer’s requirement
Voltage (V)	380	380
Power (kW)	21	30
Compressed air consumption (m3/min)	0.22	0.412
Air pressure (MPa)	0.7	0.7
Working temperature (℃)	20-25	20-25
Cooling capacity (kcal/h)	21800	21800
Cooling tunnel temperature (℃)	5-10	5-10
Pure chocolate weight (g)	2.5-512	2.5-512
Chocolate percentage for center filled chocolate (%)	15-40	15-40
Machine weight (kg)	5250	6950
