380V Chocolate Bar Production Line / Conche Refiner Machine 1 Year Warranty

  • 380V Chocolate Bar Production Line / Conche Refiner Machine 1 Year Warranty
  • 380V Chocolate Bar Production Line / Conche Refiner Machine 1 Year Warranty
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Voltage 380V Power Model
Dimension(L*W*H) Capacity Certification CE/ISO9001
Warranty 1 Year Grinding Time 8~22 Hours
High Light

chocolate processing equipment

,

chocolate bar making machine
Leave a Message
Product Description

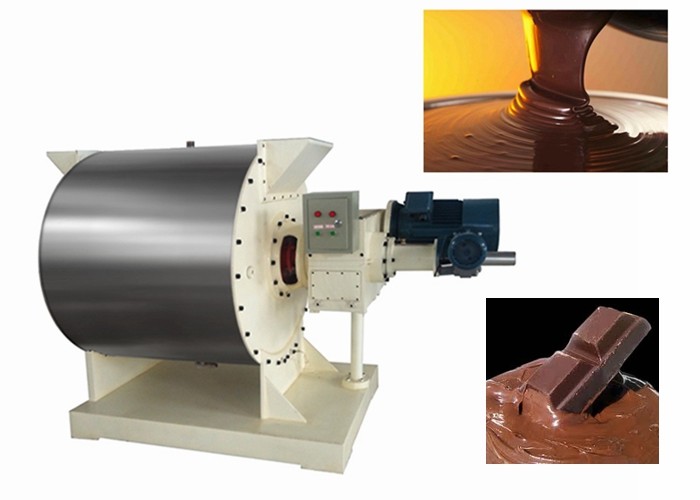

Popular chocolate conche refiner machine for small business price



Products description



Chocolate conche machine is one of the major machines for fine grinding chocolates and can also be used to grind soya flour, oil plants and the raw materials for daily-use chemicals with requirements for fine granules.



Technical parameters:

Model QYJ20 QYJ100 QYJ500 QYJ1000 QYJ1500 QYJ2000 QYJ3000
Maximum capacity(L) 20 100 500 1000 1500 2000 3000
Grinding Fineness(micron) 20~25 20~25 20~25 20~25 20~25 20~25 20~25
Main Axle Rotating Speed(rpm) 93 48 33 35 35 35 35
Grinding time(h) 8~10 12~16 16~22 16~22 16~22 16~22 16~22
Main motor power(kw) 1.5 5.5 15 18.5 30 37 45
Electrical heating power(kw) 0.6 2.5 5 2X2 6 3x2 12
Power of spot operation motor(kw) manual manual 1.5 1.5 1.5 1.5 1.5
Weight(kg) 295 1050 2572 3050 4850 5350 7500
Outside dimensions(mm)

920*600

*1110

1200*1150

*1050

2465*1146

*1312

2627*1280

*1520

2918*1650

*1920

3040*1912

*1920

3450*2016

*2280



More details:



Motor: good brand Chinese motor

Electrics: Schneider or omron

Sticks and scrapers Material: 65#Mn steel after heat treatment with high strength, hardness and good abrasion resistence. Life is about 3 yeasrs with normal use.

Machine body: painted carbon steel

With auto-feeding cooling water, two temperature sensor

Spare parts: 1pcs electrical heatings, some pcs linears, 1pcs scrapers, about 1 meter packing.



380V Chocolate Bar Production Line / Conche Refiner Machine 1 Year Warranty 0380V Chocolate Bar Production Line / Conche Refiner Machine 1 Year Warranty 1
