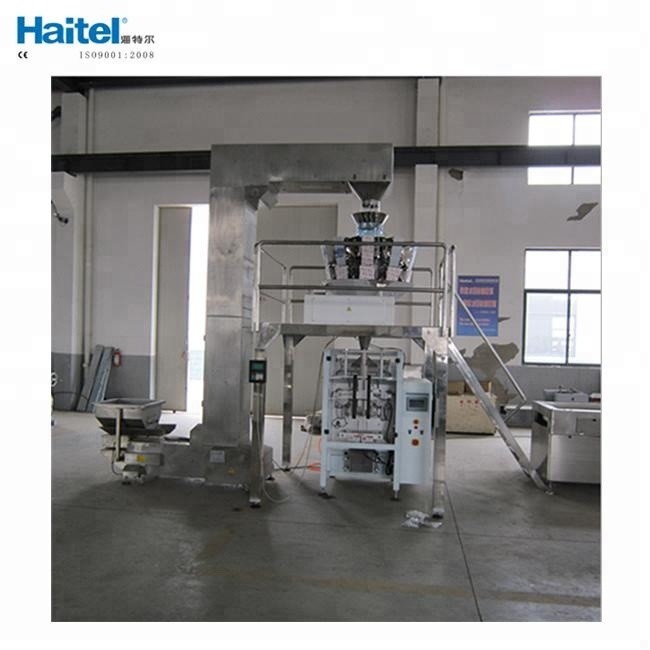

Precise Positioning Automatic Food Packing Machine Double Servo Control System

Precise Positioning Automatic Food Packing Machine Double Servo Control System
Precise Positioning Automatic Food Packing Machine Double Servo Control System Precise Positioning Automatic Food Packing Machine Double Servo Control System Precise Positioning Automatic Food Packing Machine Double Servo Control System Precise Positioning Automatic Food Packing Machine Double Servo Control System

Large Image :  Precise Positioning Automatic Food Packing Machine Double Servo Control System

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: haitel
Certification: CE ISO9001
Model Number: V520

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden case package
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 Piece/Pieces per Month
Detailed Product Description
Function: Filling, Sealing, Wrapping Packaging Type: Bags
Automatic Grade: Automatic Voltage: 220V
Dimension(l*w*h): 1320*950*1360mm Bag Length (mm): 80~400
Type: Multi-Function Packaging Machine Condition: New
High Light:

food product packaging machine

,

snack food packaging machine



Factory price automatic gummy bear candy packing packaging machine







Application:



The bagging machine is widely used for packing of products in shape of granules, stripes, slices, such as candy, potato chips, jelly, and peanuts.



Characteristics:



1. Touch screen with stable transmitting PLC control to perform bag making, weighing, filling, sealing, code printing, and cutting automatically.



2. Independent compressed air control and electrical wire system control separately, low noise in running, stable performance.



3. Vacuum belt pulling system to feed film and make bags with no faults.



4. Double servo control system, precise positioning.



5. Easy to palce the rewind rolls onto the machine.



6. Set uo and adjust parameters on touch screen to change bag size.



7. Sealed structure design to prevent dust contamination.

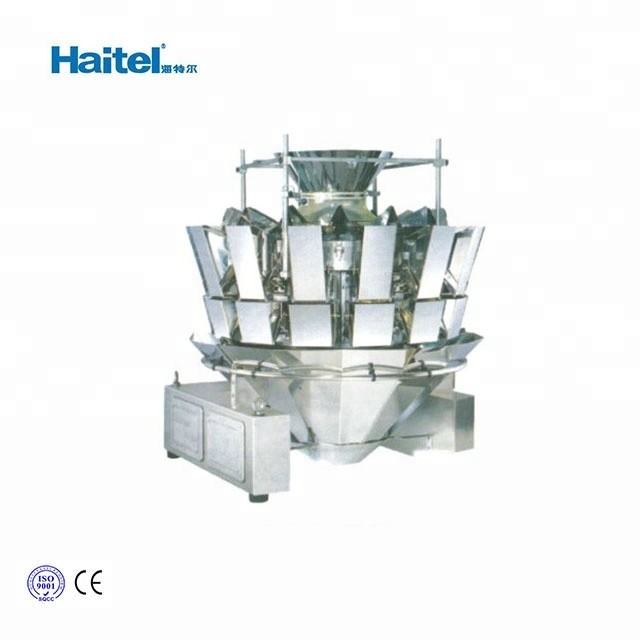

8. Multi computerized weighing heads to deliver correct weight.



Specifications:



Mode HTL-V420 HTL-V520 HTL-V680
Bag length(mm) 80-300(L) 80-400(L) 100-480(L)
Bag width(mm) 50-200(W) 80-250(W) 180-320(W)
Max width of roll film(mm) 420 520 680
Packing speed(bags/min) 5-60 5-50 5-50
Volumn range 150-1200ml 3000Max 6000Max
Air consumption(Mpa) 0.65 0.65 0.65
Gas consumption(m3/min) 0.3 0.4 0.4
Power voltage 220V 220V 220V
Power(KW) 2.2 4 5
Dimension(L*W*H)mm 1320*950*1360 1150*1795*1650 1780*1350*1950
Weight(kg) 540







Our Services


Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.

After-sale

1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.



Precise Positioning Automatic Food Packing Machine Double Servo Control System 0

Precise Positioning Automatic Food Packing Machine Double Servo Control System 1
