Large Output Cereal Bar Snack Candy Forming Machine Effective Width 400mm

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-608D
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Applicable Industries Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops Condition New
Voltage 220/380V Power 3.5KW
Weight 800kg Dimension(L*W*H) 8800*1000*1450MM
High Light

candy manufacturing machine


hard candy making equipment

Leave a Message
Product Description

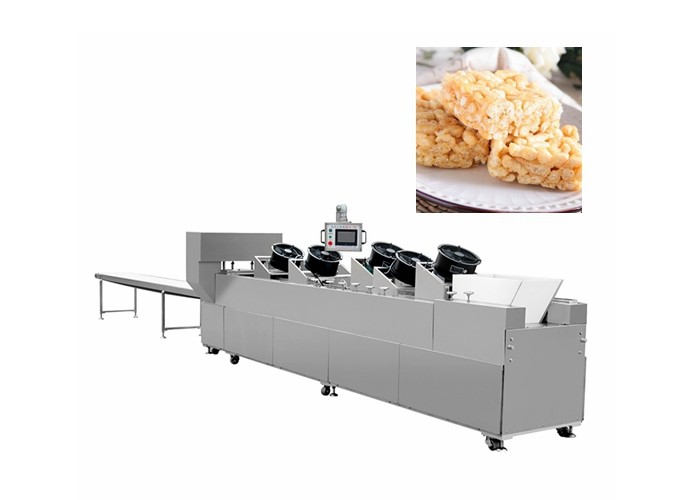

large output cereal bar candy bar snack forming and making machine

Main equipment info

General working procedure(The equipement may different as per the actual finished product):


Puffing granulator→Sugar boiled pot→Mixing machine→Ascension conveyor→ Automatic cutting and forming machine→ Cooling line → Packing machine

Product Uses

It is widely used for making cereal bar, rice candy ,peanut candy etc.

Large Output Cereal Bar Snack Candy Forming Machine Effective Width 400mm 0





1.The stirring, leveling, cutting three process integrated together, without human connection among them, has realized the real automatic and intelligent operation. Improve the production efficiency, save the human cost.

  2.Imitate human manual cutting principle, adopts advanced frequency control of motor speed, different products can meet your needs.

3. Has many reforming flat structure, suppression smooth, uniform thickness. Cutting speed automatic control, automatic feeding, horizontal, vertical automatic feed cutting food, square size can be customized.
4. PLCintelligent computer controlled,convenient and efficient,easy to operation.

5. This machine working continuous,no-stop slitting and cutting,improving produce efficiency,the output can reach 2000pcs/min.

6. High speed head of slitting can adjust length freedom,have no length and short bars and incline phenomenon.

7. Auxiliary products uniformity,use no enquidistance packing auger,put all auxiliary material uniformity products.

8. Surface pressed light,adjust thickness and thin convenience.

9. The quality of all machines's material very good,reasonable design.


Technical Paramater :


Capacity ≤100 knife/min
Voltage 380V/50HZ
Power 6kw
Effective width 400mm
Range of product L=0-100mm/100mm-200mm
Weight 2000kg

11800*1000*1300mmDimension can custom-made according to requirement

Forming and cutting part length5800mm;Cooling conveyer length6000mm


Large Output Cereal Bar Snack Candy Forming Machine Effective Width 400mm 1
