Large Automatic Vertical Packing Machine PLC Control With Good Stability

Place of Origin Jiangsu, China (Mainland)
Brand Name haitel
Certification CE ISO9001
Model Number V420/V520/V680
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case package
Delivery Time 60days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Bag Length (mm) 80~300,80`400,100~480 Bag Width (mm) 50~200,80~250,180~320
Max Width Of Roll Film (mm) 420,520,680 Packing Speed (bags/min) 5~60,5~50,5~50
Measuring Range (ml) 150~1200 3000 (Max) 6000 (Max) Air Consumption (Mpa) 0.65
Gas Consumption (m³/min) 0.3 0.4 0.4 Power Voltage (V) 220V 220V AC/50Hz 220V AC/50Hz
Power (KW) 2.2 4 5 Automatic Grade Automatic
High Light

industrial food packaging equipment


snack food packaging machine

Leave a Message
Product Description

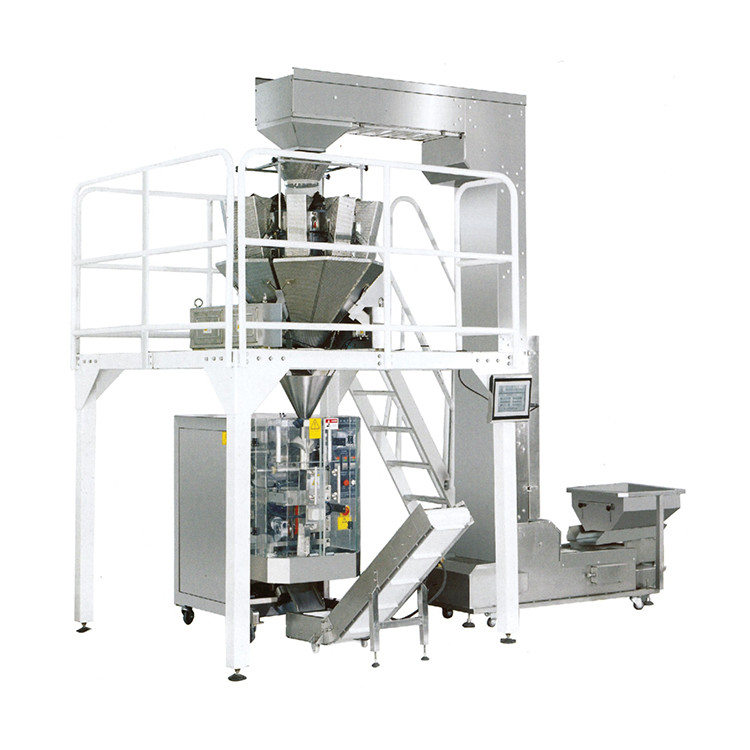

Large Vertical Automatic Packaging Machine HTL-V420/V520/V680





 PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.


Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.


Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.


Double servo control, high precision orientation, size more nicely.


External film releasing mechanism: simpler and easier installation of packing film.


Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.


Close down type mechanism, defending powder into inside of machine.

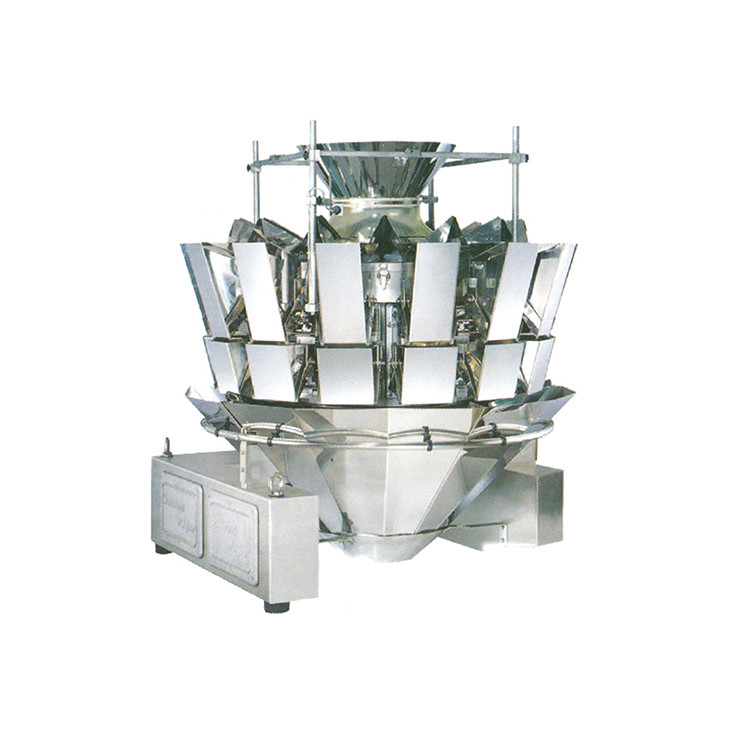

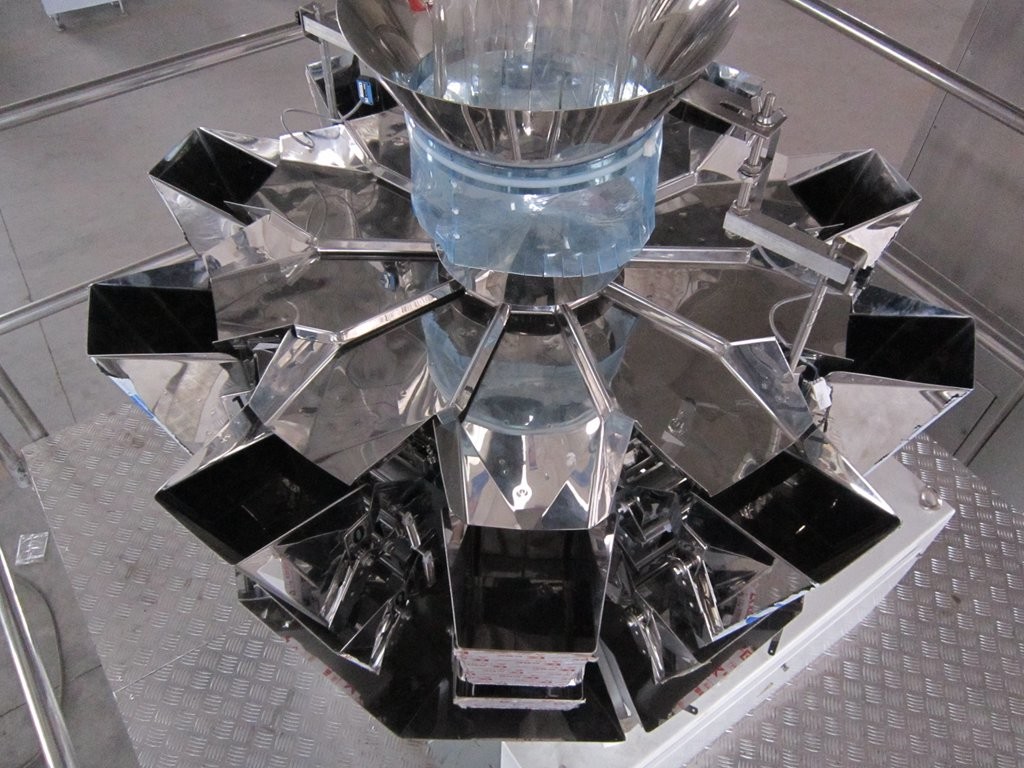

Multihead weighter measuring, packing weight more precision, product cost more low.




It is suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.


Main technical and Price:


Model HTL-V420 HTL-V520 HTL-V680
Bag length (mm) 80~300 80`400 100~480
Bag width (mm) 50~200 80~250 180~320
Max width of roll film (mm) 420 520 680
Packing speed (bags/min) 5~60 5~50 5~50
Measuring range (ml) 150~1200 3000 (Max) 6000 (Max)
Air consumption (Mpa) 0.65 0.65 0.65
Gas consumption (m³/min) 0.3 0.4 0.4
Power voltage (V) 220V 220V AC/50Hz 220V AC/50Hz
Power (KW) 2.2 4 5
Dimension (L*W*H) (mm) 1320*950*1360 1150*1795*1650 1780*1350*1950
Weight (kg) 540 600 900


Our Services


confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.


1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
