HTL-120-G1 One drag one high speed servo flat production line

Place of Origin China
Brand Name Haitel
Certification IOS CE
Model Number HTL-120-G1
Minimum Order Quantity 1
Price $36000-$40000
Packaging Details wood
Delivery Time 15days
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 20
Product Details
Equipment Size 5970mm(L)×2240mm(W)×1950mm(H) Weight 4000kg
Automatic Grade Full-automatic Warranty 1 YEAR
Color Silver Production Capacity 60-90pcs/min
Mask Material Non-woven Fabrics Power 2kw
Leave a Message
Product Description

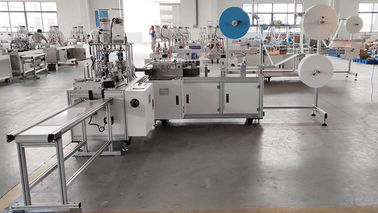

HTL-120-G1 One drag one high speed servo flat production line


1.product description


HTL-120-G1 high-speed servo mask machine is a fully automatic high-speed flat earband mask production line newly developed by Jiangsu Haitel Machinery Co., Ltd. It includes automatic raw material delivery, automatic conveying, folding, cutting nose bridge, mask edge welding, ultrasonic fusion , forming, cutting and other full process automation, complete the entire production process from the raw material of the coil to the finished mask.


2.Equipment product features:

  • The whole equipment is fully automated.
  • The whole machine adopts aluminum alloy structure, which is beautiful and firm without rust.

  • Computer PLC programming control, servo drive, high degree of automation.

  • Automatic tension control of raw materials to ensure the balance of raw material tension.

  • Photoelectric (optical fiber) testing materials to avoid mistakes and reduce waste.

  • The use of high-speed servo components significantly improves efficiency.

3.technical parameter

Equipment size:5970mm(L)×2240mm(W)×1950mm(H)(Without receiving line);

Appearance color: International standard warm gray 1C (DB standard color), according to this standard when no special instructions

equipment weight:≤2500kg,Ground bearing≤300KG/m2;
Working power:equipment 220VAC±5﹪,50HZ,Rated power 9KW;
Compressed air:0.5~0.7 MPa,Use flow approximately 300L/min;
Use environment: temperature 10~35℃, humidity 5-35%HR, no flammable, corrosive gas, no dust (cleanness not less than 100,000)
Productivity: 70-90PCS/MIN;
Equipment production pass rate: 99% (except when the incoming materials do not meet the requirements and employees do not operate improperly)

Equipment failure rate: 2% (refers to the failure caused by the equipment itself)


HTL-120-G1 One drag one high speed servo flat production line 0HTL-120-G1 One drag one high speed servo flat production line 1HTL-120-G1 One drag one high speed servo flat production line 2HTL-120-G1 One drag one high speed servo flat production line 3
