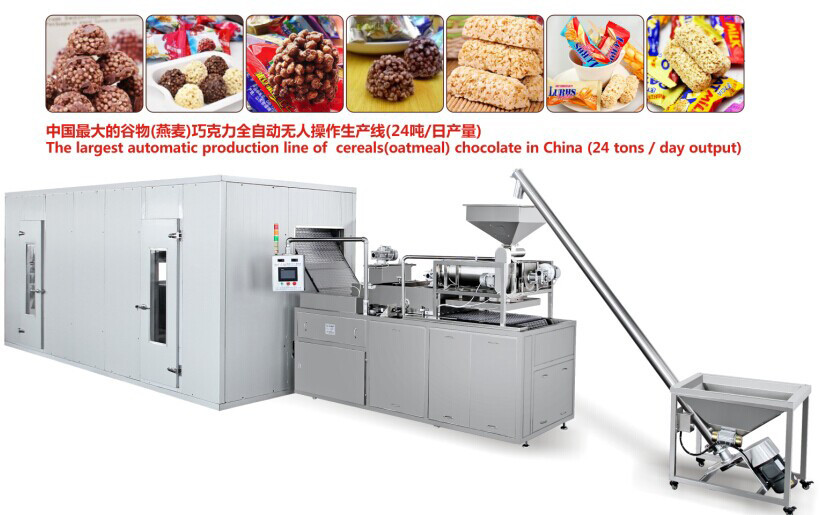

High Durability Cereal Production Line , Oatmeal Chocolate Manufacturing Machine
|Place of Origin||Jiangsu, China (Mainland)|
|Minimum Order Quantity||1 Set|
|Packaging Details||wooden case package|
|Delivery Time||Shipped in 7 days after payment|
|Payment Terms||L/C, T/T, D/A, D/P, Western Union, MoneyGram|
|Supply Ability||15 Piece/Pieces per Month|
|Production Capacity||2000-6000 Kgs/shift (According To The Shape Of Product.)||Total Power||4.5KW|
|Bleed Pressure||0.6Mpa||Dimension (L*W*H)||4500×900×2500 Mm|
|Mould Size (L*W*H)||400×300×30 Mm (Mould And Product Shape Can Be Made According To Customer’s Requirements)||Speed||10-13 Moulds/min|
cereal bar production line,
cereal processing equipment
oatmeal chocolate machine snickers chocolates cereal chocolate making machine
1. It uses PLC touch screen control, automatic frequency speed control.
2. Human-machine operation interface (touch screen), material situation detection and overload protection. It automatic security alarms and shows on the screen if there appears bad condition.
3. Production storage is programmed, different colors of chocolate and products can be changed in 15 minutes. Easy operation and it runs more stably with recipe.
4. Heating system is separated from control system. If there is interruption of power supply in the control system, the heating system can guarantee chocolate constant temperature, prolonging the life of control system.
5. It can mix chocolate or jam and nutlets, fruits, frumentum or other granular foods. The forming shape is diversified and can be made according to customer’s requirements.
6. It uses 2 sets of high precision cam rotor pump continuously mixing materials. The burdening system and high precision cam rotor pump can guarantee machine more stable when producing and mixing.
7. In the process of production, the mixing materials can be detected by sensor. The frequency converter can realize the function of material supplement. The production process is controlled by a sensor, no need stop the machine.
8. All the machine is made of stainless steel and use special fitting such as SMC magnetic rodless pneumatic cylinder. It can correspond to the requirement of food sanitation.
9. We use imported technology, and continuously improve equipment by the process of after sale service to our clients and according to commissioning report. We can make it according to customer’s requirements, on the basis of the original equipment, adding a set of materials transfer system and a set of chocolate transfer system, which makes the finished products more diverse.
10. The whole machine including baking moulds, mixing and forming segment, cooling segment, and packing segment.
|Power||2.2 KW, 3HP|
|Dimension (L*W*H)||1100*850*1300 mm|
|Rotate speed||63 r/min|
|Production Capacity||2000-6000 kgs/shift (According to the shape of product.)|
|Dimension (L*W*H)||4500×900×2500 mm|
|Mould size (L*W*H)||400×300×30 mm (Mould and product shape can be made according to customer’s requirements)|
Automatic Oatmeal Chocolate Depositing Machine
