Ear Strap Nose Bridge Filling N95 Mask Production Line

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL
Minimum Order Quantity 1 Set
Price USD
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 15 working days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Set/Sets per Month
Product Details
Size 10050*1500*2200mm Weight 2800kg
Color Warm Gray Voltage 380V/50hz
Capacity 25-60 Pcs/min
High Light

9KW Mask Making Production Line


25pcs/min Mask Making Production Line

Leave a Message
Product Description

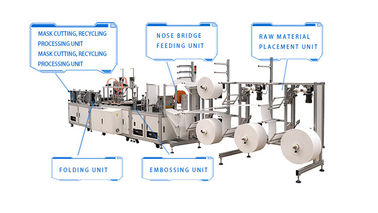

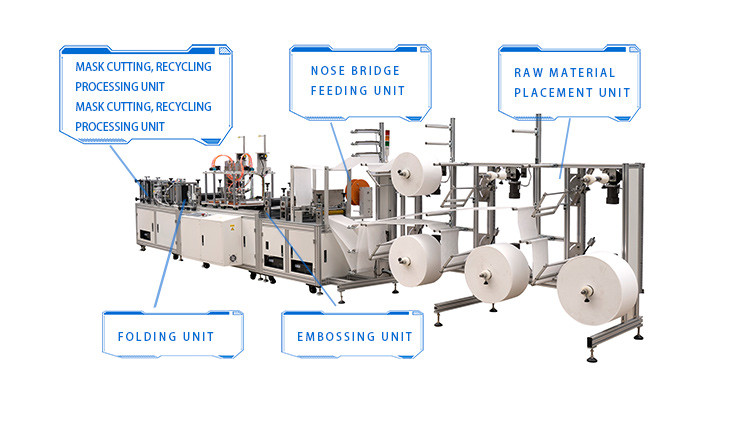

HTL-KN95 Mask Production Line

HTL-KN95 mask machine is a fully automatic high speed KN95 mask production line newly developed by Jiangsu RichYin Machinery Company,Haitel Group. including automatic raw material delivery, automatic conveying, cutting nose bridge, welding forming, nose bridge filling, ear strap welding, folding, cutting Recycling and other full-process automation, complete the entire production process from coil raw materials to finished masks.


Technical Parameters:


1.Equipment size:10050mm(L)×1500mm(W)×2200mm(H)(Without receiving line);
2. Appearance color: International standard warm gray 1C (DB standard color), according to this standard when no special instructions

3.Equipment weight:≤2800kg,

Ground bearing≤300KG/m2;

4.Working power:Equipment 380VAC±5﹪,50HZ,Rated power 9KW;
5.Compressed air:0.5~0.7 MPa,Use flow is about 20000L/min;
6.Use environment:Temperature 10~35℃,Humidity 5-35%HR,No flammable, corrosive gas, no dust(Cleanliness not less than 100,000)
7.Productivity: 25-60PCS/MIN;
8.Equipment production pass rate:99%( When the incoming materials do not meet the requirements and the employees do not operate properly)
9.Equipment failure rate:2%(Refers to the fault generated by the device itself)



Ear Strap Nose Bridge Filling N95 Mask Production Line 0
