Custom Gumball Candy Manufacturing Machine With LED Touch Panel CE Certificate

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-T150
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time 60days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Voltage 380V Power 43kw
Weight 5500kg Certification CE Certificate
Material Stainless Steel Type Candy Making Machine
High Light

candy manufacturing machine


hard candy making equipment

Leave a Message
Product Description


Haitel China Cheap 380V (adjustable) gumball candy machine for custom


1. Machine Brief Introduction for gumball machine:

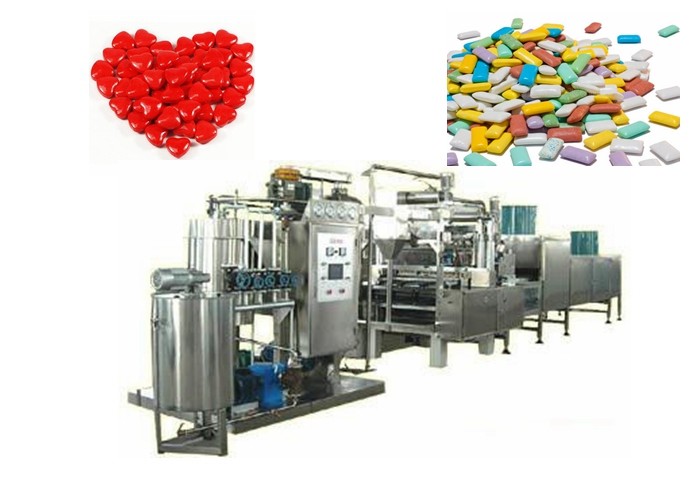

Hard/lollipop Candy depositing line is advanced equipment which can continuously produce various kinds of hard candies under a strict sanitary condition. This line can automatically produce high-quality hard candy, such as single color candy, two-color candy, crystal candy, central-filling candy, etc. The processing line is also an advanced and continuous plant for making different sizes of ball-type lollipop candies, also can make the two-color striped lollipops, and ball-type lollipop (stick –adding can be done automatically). It also can make toffee candy, just to change the sugar cooking system.


2. Feature of gumball machine:

1) PLC /computer process control available;

2) An LED touch panel for easy operating;

3) The production capacity is about 150kgs/h;

4) The main body is made of Stainless Steel

5) Optional (mass) flowing controlled by Frequency inverters;

6) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;

7) Dosing pumps for the automatic injection of colors, flavors and acids;

8) Use automatic steam control system instead of manual steam valve which controls a stable steam supply to the microfilm cooker.


3. Specifications of gumball machine:

Model 150 300 450
Production capacity 150kg/h 300kg/h 450kg/h
Rated Depositing times 55-68 (n/min)
steam Dosage 250kg/h 300kg/h 400kg/h
pressure 0.2-0.6 mpa
power Voltage 380v
power 18kw 27kw 34kw
Compressed air needed Dosage 0.2m3/min 0.25 m3/min 0.3 m3/min
pressure 0.4-0.6mpa
Conditions needed for cooling system 20-25℃ 55% humidity
Candy weight Shell (two tone)6g (max) center sweet(two tone)8g(max)
Gross Weight 3000kg 4000kg 4500kg
