Aluminum Alloy Structure 25pcs / Min KN95 Mask Production Line

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL
Minimum Order Quantity 1 Set
Price USD
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 15 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Set/Sets per Month
Product Details
Material Aluminium Alloy Structure Product Name KN95 Mask Machine
Capacity 25-60pcs/min Feature Full Automatic
Layer 4-6 Color Warm Grey
Size 10050×1500×2200mm Weight 2800kg
Voltage 380V Temperature 10~35℃
Humidity 5-35%HR
High Light

380V KN95 Mask Production Line


5%HR KN95 Mask Production Line

Leave a Message
Product Description

KN95 Mask Production Line Whole Machine Adopts Aluminum Alloy Structure

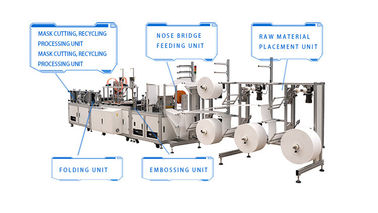

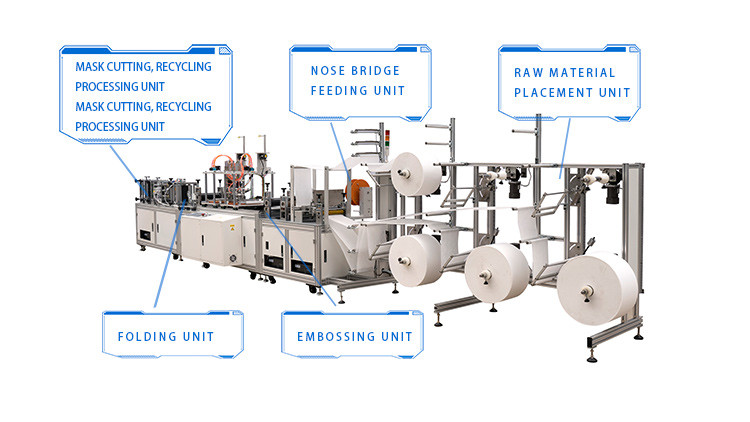

HTL-KN95 mask machine is a fully automatic high speed KN95 mask production line newly developed by Jiangsu Haiteer Machinery Co., Ltd., including automatic raw material delivery, automatic conveying, cutting nose bridge, welding forming, nose bridge filling, ear strap welding, folding, cutting Recycling and other full-process automation, complete the entire production process from coil raw materials to finished masks.



Technical Parameters:


1.Equipment size:10050mm(L)×1500mm(W)×2200mm(H)(Without receiving line);
2.Appearance color: International standard warm gray 1C (DB standard color), according to this standard when no special instructions

3.Equipment weight:≤2800kg,

Ground bearing≤300KG/m2;

4.Working power:Equipment 380VAC±5﹪,50HZ,Rated power 9KW;
5.Compressed air:0.5~0.7  Use flow is about 20000L/min;
6.Use environment:Temperature 10~35℃,Humidity 5-35%HR, No flammable, corrosive gas, no dust(Cleanliness not less than 100,000)
7.Productivity: 25-60PCS/MIN;
8.Equipment production pass rate:99%(When the incoming materials do not meet the requirements and the employees do not operate properly)
9.Equipment failure rate:2%(Refers to the fault generated by the device itself)



This product is a full-automatic face mask production line, which realizes the entire automatic operation and simple operation.The whole process only needs 1-2 people to operate,.Due to the large global demand and many orders, the delivery date needs to be determined after negotiation.
