1000kg / Hour Candy Cutting Machine / Cereal Bar Making Machine

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Dimension(L*W*H) 10000*23500*1950 Mm Power 27.5 KW
Weight 2900kg Condition New
Capacity 1000kg/hour Quality Reliable
High Light

candy processing equipment


candy processing machine

Leave a Message
Product Description

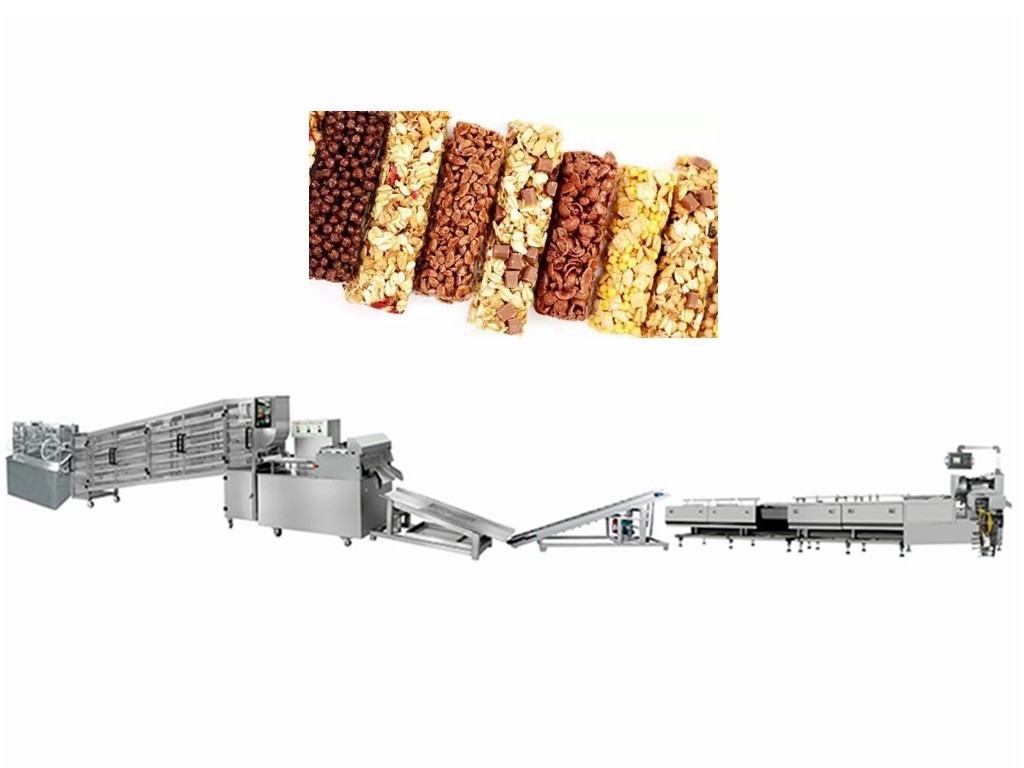

Automatic cereal bar production machine with stainless steel


Technical Parameters:


Moulds size 800*300*30 mm
Moulds quantity 92pcs
Production capacity 1000kg/h
Forming part power 27.5 KW
Dimension (L*W*H) 10000*23500*1950 mm Cooling tunnel length:6250 mm
Temperature control range 4-14℃
Relative humidity 50%
Installed capacity 50 KVA
Refrigeration system power Refrigeration system power
Input wire specification ≥ 30mm²
Cooling water inflow pressure ≥0.15MPa
Cooling water flow rate 7 m³/hour
Water temperature ≤30℃
Work environment Temperature ≤25℃,Relative humidity :≤55%


Product Description


1. We have 12 national patents for this equipment.

2. With PLC control, and the high quality inverter; convenient speed adjustment, stable performance.

3. More than 10 different products' parameters can be deposited in, just one click can change the product, and the parameters can also be changed dynamically during the process of the operation.

4. The part of machine is of stainless steel, precision rotor pump to inject the materials, more stable and easier to clean, accord with the food hygienic standard.

5. The chocolate transfer and mixing temperature are controlled by the constant temperature control device, and this device can stabilize the constant temperature of the chocolate paste.

6. Automatic alarm device, remind the fault, chocolate and the material level are low, etc.

7. Direct molding, without rework and loss.

8. Automatic feeding, automatic leveling, automatic cooling, automatic ejection, large output, high efficiency, and no manual.

9. The whole machine is mechanical transmission, very accurate position, molding mold close cooperation, and the forming effect is good and beautiful.

10. The moulds are quick changing moulds, easy to changeover.

11. The cooling tunnel has 5 layers, it can save space.

12. The whole production line only needs 4-5 workers, it can save labor cost.

13. The machine can adjust the products tight or loose.
