10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine

China 10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine supplier
10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine supplier 10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine supplier 10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine supplier 10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine supplier

Large Image :  10KW Snack Food Production Line Automatic Feeding Conveyor / Packing Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: Haitel
Certification: CE ISO9001
Model Number: HTL-1000-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: wooden case package
Delivery Time: 60days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 Piece/Pieces per Month Contact Now
Contact Now
Detailed Product Description
Total Power: 10kw (L*W*H) Dimension: 8520×2200×1400mm
Total Weight: 2000kg Output: 200-600min
Voltage: 220V/50HZ Remark: Can Match Filling Air Device And Printer
Automatic Grade: Automatic Packaging Type: Bags, Cartons, Film

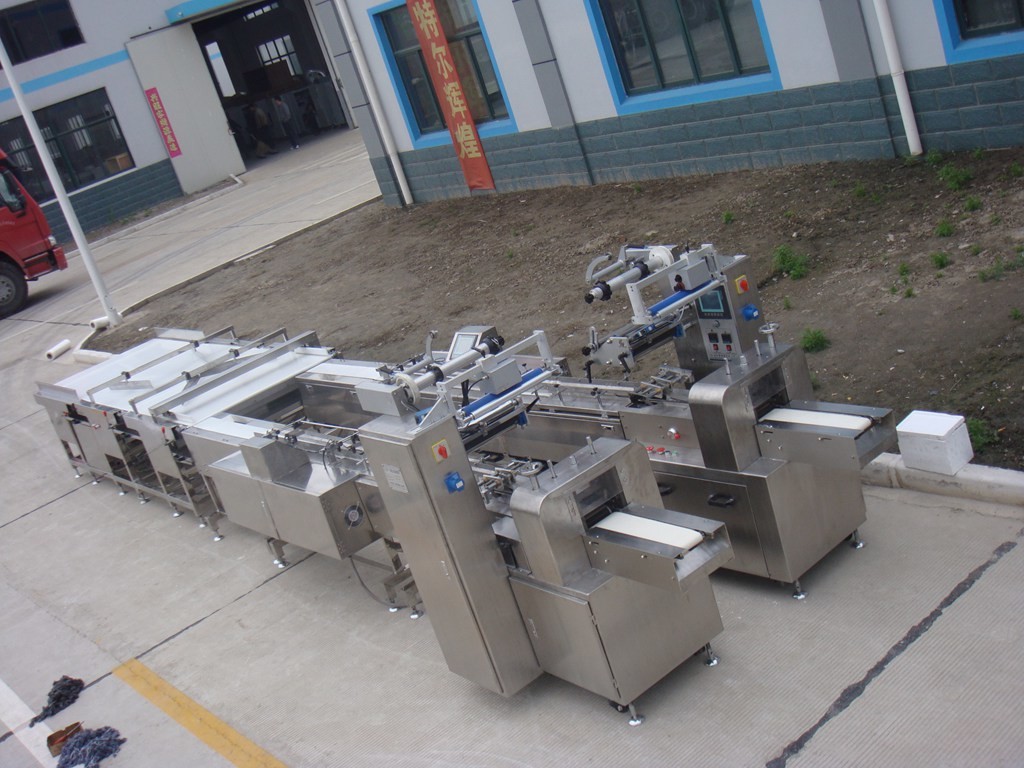

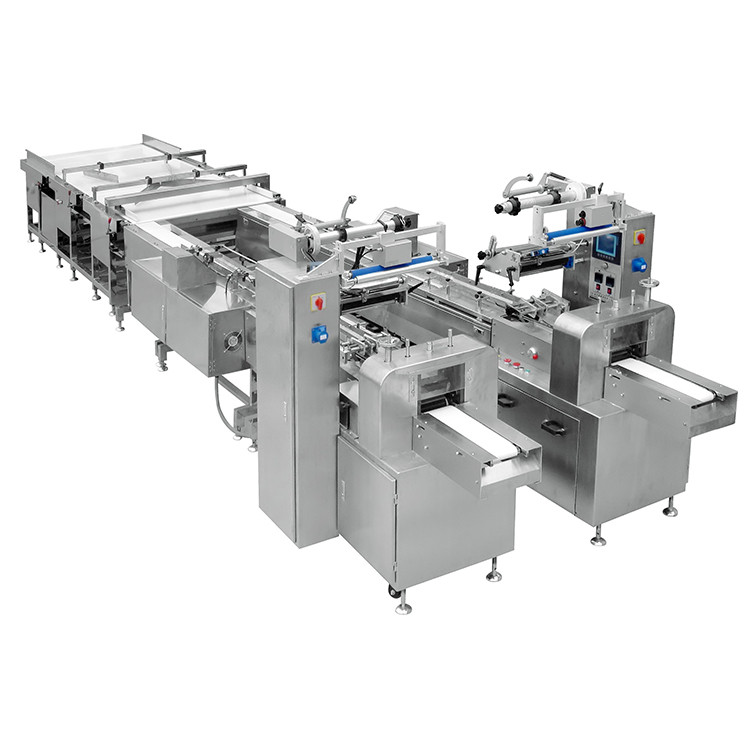

TL-1000-2 Automatic Feeding Conveyor And Packing Machine






1. Characteristics

The products line is composed of automatic feeding conveyor and packing machine.

It can pack individually, and it also can directly seamless docking with the processing line, conveying, feeding and packing.

It solves manual feeding type completely, so it has high feeding speed and precision.

The servo system control is imported from SIEMENS of Germany, convenient operation, high degree of automation.

Materials are irregular distribution on the feeding belt, up to realize full-automatic shunt placing by servo control system, and then, through many servo systems is to automatically realize materials order into automatic packing machine to pack.

Production line can be designed and made according to the customer’s technical requirements.

2. Main technical parameters and Price:


ModelHTL-1000-2
Total power10 KW
Dimension (L*W*H)8520×2200×1400 mm
Total weight2000 kg
Output200~600 pcs/min
Voltage220V 50Hz


HTL-1000-2 Configuration:


NOPartsBrand
1PLCSiemens
2Touching ScreenSiemens
3CoderOmron
4Main motorSiemens
5Servo Motor*5 pcsTaiwan TECO
6Servo Drive*5 pcsTaiwan TECO
7Invertors* 9pcsPanasonic
8Indicating LightSchneider
9SwitchSchneider
10Urgent Stop SwitchSchneider
11ButtonSchneider
12Connecting TerminalSchneider
13ApproachSchneider
14Photoelectrical eyeSick
15Solid RelayOmron
16Temperature controllerOmron
17Alarm equipmentOmron
18Air SwitchSchneider
19Leakage ProtectionSchneider




Our Services


Pre-sale

confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
