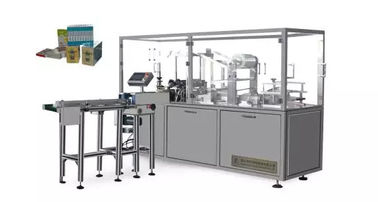

Transparent Film Three - Dimensional Packaging Machine With PLC Microcomputer Control

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL-320
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Packing Range(L*W*H) (60~310)×(50~240)×(18-110)mm Compressed Air Pressure Mpa ≥0.7
Air Consumption M3 / Min 0.5 Power Supply 420V 50Hz Or 380V Or 220V
Conveying Motor Power Kw 0.18 Total Power Kw 6.5
Dimensions (L*W*H) 2250×850×1615mm Total Weight Kg 800
High Light

automatic pastry making machine


industrial pastry machine

Leave a Message
Product Description


transparent film three-dimensional packaging machine quotation


First, the equipment overview

The ha-320 double-private-type adjustable transparent film three-dimensional packaging machine is an integrated product of machine, electricity and gas.


The machine is widely used in the packaging of various kinds of box-type articles in the industries of medicines, foods, preserved products, cosmetics, daily necessities, stationery, poker, etc. or single-box fully enclosed automatic packaging.


The products packaged by the machine have the functions of “three anti-three improvement”, namely anti-counterfeiting, moisture-proof and dust-proof; improve product grade, increase product added value, and improve product appearance and decoration quality.


The machine adopts imported plc control, dual-private service (lower film private service and push version private service) machine electrical integrated operation system.


The performance is reliable, easy to use, and can be produced in linkage with the cartoning machine and the cartoning machine.


The machine uses a conveyor belt to supply packaged articles, and the articles are packaged by a series of mechanisms such as film folding and sealing.


It is mainly used for the exterior packaging of various boxed items, and its packaging form can be flat or vertical (depending on user needs).


The folded part is bonded by heat sealing to achieve compact, decorative, beautiful and moisture-proof effects.The film is packaged with a unsealed narrow strip, which is convenient for the unpacking of the finished product. It is a three-dimensional packaging equipment for the domestic advanced box-type package or larger items.

Second, product performance characteristics

This equipment is a packaging machinery equipment that our company has perfected and improved its peer products with rich practical experience, which meets the requirements of our company's configuration production line.


This machine has the following performance characteristics

  • With heating plate temperature control detection, main motor overload protection, package material position detection, this machine with transformer protection protects the machine.
  • Motion component position monitoring, overload protection photoelectric (anti-stagnation), fault prompt and alarm automatic shutdown protection system;
  • The input and output ports of the device facilitate the connection with the front and rear processes;
  • Simple and convenient adjustment;
  • It adopts plc microcomputer control, touch screen operation, text and digital display, fault diagnosis prompt, easy and reliable operation and convenient maintenance.


Third, the requirements of packaging materials

Transparent film: BOPP film, generally thicker than 0.022~0.03mm, preferably without static electricity.

It is required to meet the requirements of national pharmaceutical packaging or food packaging materials for pharmaceutical and food packaging.

             Coil core inner diameter: φ60~80mm

             Unpacking narrow strip width: 1.2~3 mm

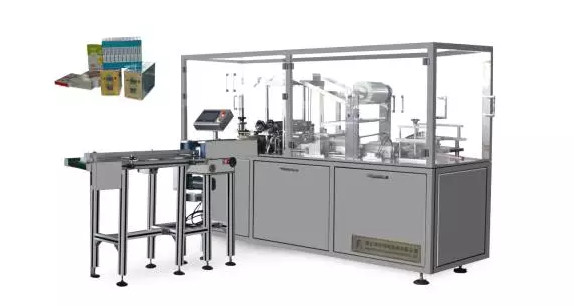

Transparent Film Three - Dimensional Packaging Machine With PLC Microcomputer Control 0

Fourth, the main technical parameters

project parameter
Packing speed (package / minute) 10 ~ 30 "depending on the box"
Packing range (length × width × height) mm (60~310)×(50~240)×(18-110)
Packaging material Cellophane BOPP or coated PVC heat sealing film 0.02-0.05 mm
Compressed air pressure Mpa ≥0.7
Air consumption m3 / min 0.5
power supply 420V 50Hz or 380V or 220V
Conveying motor power Kw 0.18
Total power Kw 6.5
Dimensions (length × width × height) mm 2250×850×1615
Total weight Kg About 800
