Good Performance Automatic Oat Cereal Candy Bar Making Machine 400 Kg / Hour
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-T888 A/B |
| Minimum Order Quantity | 1 piece |
| Price | Negotiable |
| Packaging Details | Wooden case packing according to your demand |
| Delivery Time | Shipped in 45 work days after payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Place Of Origin | Jiangsu, China (Mainland) | Model Number | T888 |
|---|---|---|---|
| Voltage | 380V | Power | 12kw |
| Weight | 3000 Kg | Warranty | 1 Year |
| Application | Chocolate | Capacity | 400 Kg/hour |
| High Light | cereal bar production line,cereal processing equipment |
||
Product Description

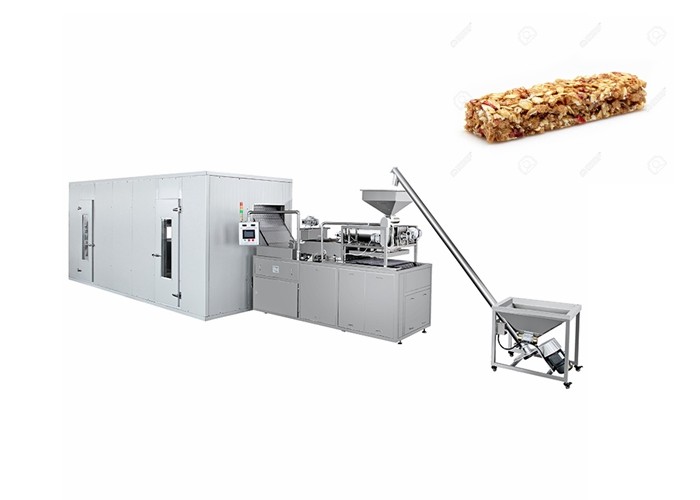

Good Performance Automatic Oat Cereal Candy Bar Making machine
Main Technical Parameters:
| Mould size | 800*300*35 mm |
| Capacity | 1 ton/hour |
| Forming Part Power | 12 KW |
| Dimension (L*W*H) | 8600*1800*2000 mm |
Inside the cooling cabinet:
| Temperature control range | 4-14°C, |
| Relative humidity | 50% |
| Machine Power | 50 KVA |
| Cooling System Power | 15 P |
| Inner wire size | ≥30 mm² |
| Inside cooling water pressure | ≥0.15Mpa |
| Cooling water flow rate | 7m³/h |
| Water temperature | less than 30°C |
| Working condition | Temperature≤25°C |
| Relative humidity | ≤55% |
characteristics:
1. We have 12 national patents for this equipment.
2. With PLC control, and the high quality inverter; convenient speed adjustment, stable performance.
3. More than 10 different products' parameters can be deposited in, just one click can change the product, and the parameters can also be changed dynamically during the process of the operation.
4. The part of machine is of stainless steel, precision rotor pump to inject the materials, more stable and easier to clean, accord with the food hygienic standard.
5. The chocolate transfer and mixing temperature are controlled by the constant temperature control device, and this device can stabilize the constant temperature of the chocolate paste.
6. Automatic alarm device, remind the fault, chocolate and the material level are low, etc.
7. Direct molding, without rework and loss.
8. Automatic feeding, automatic leveling, automatic cooling, automatic ejection, large output, high efficiency, and no manual.
9. The whole machine is mechanical transmission, very accurate position, molding mold close cooperation, and the forming effect is good and beautiful.
10. The moulds are quick changing moulds, easy to changeover.
11. The cooling tunnel has 5 layers, it can save space.
12. The whole production line only needs 4-5 workers, it can save labor cost.
13. The machine can adjust the products tight or loose.
Application:
This Machine suits chocolate, oatmeal, millet, peanut, nutlets and any granule particle mixed for the forming production of the coarse grains of sugar.
sample picture :
