Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy

  • Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy
  • Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-D808
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty 12 Months Application Food, Confectionery
Packaging Material Plastic Condition New
Function Wrapping, Sealing Packaging Type Film, Foil
High Light

automatic pastry making machine

,

industrial pastry machine
Leave a Message
Product Description

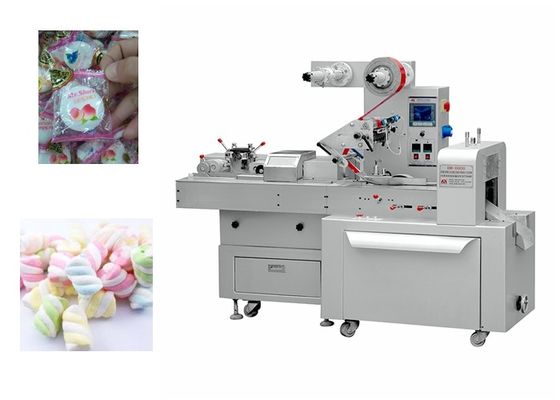

Automatic Cutting And Pillow Packing Machine for Hard Candy



Product Description

This Candy cut & wrap machine in pillow / flow pack style is suitable for soft milk candies, toffees, chews and gum products.

It is equipped with 5 servo motors, 2 pieces of converter motors, ELAU motion controller and HMI system are employed



A) Special Features :

-Independent servo drive for shaping device;

-Servo drive for feeding chain and rotary knife;

-Servo drive for longitudinal seal;

-Servo drive for horizontal seal;

-Servo drive for a pair of feeding rollers;

-Pneumatic core locking;

-Assistance device for film run;

-Centralized lubrication.



B) Output : 700 - 1000pcs/min, depending on product size .



Cut length 30 – 40mm , output is over 800pcs/min;

Cut length 60mm , output is 700 -800pcs/min.



C) Product measurements

-Length: 10-60mm (can be customized)

-Width: 10-25mm

-Thickness: 3-15mm



D) Connected load :9KW



E) Utilities

-Compressed air consumption: 4L/min

-Compressed air pressure: 0.4-0.6Mpa



F) Wrapping materials

-Heat sealable foil

-PP film



G) Material dimensions

-Reel dia.: 330mm

-Reel width: 60-100mm

-Core dia.: 76mm



H) Machine Dimension: 2900 L x 1070 W x 1670H(mm)



I) Machine Weight: 2500kgs



Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy 0

Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy 1



Automatic Cutting And Pillow Pastry Packing Machine For Hard Candy 2
