Automated Feeding Weighting Packing Machine For Puffed Food Potato Chips

  • Automated Feeding Weighting Packing Machine For Puffed Food Potato Chips
  • Automated Feeding Weighting Packing Machine For Puffed Food Potato Chips
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-V420
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty 1 Year Application Chemical, Food, Machinery & Hardware
Voltage 380V Weight 450kg
Customer Order Accept Accuracy 1-2g
High Light

automatic pastry making machine

,

industrial pastry machine
Leave a Message
Product Description



HTL-V420 automatic weight packing machine



Puffed food potato chips Automatic feeding weighting packing machine







I.Applications



It's suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips,Snacks,candy,pistachio,sugar.



II.The major performance and structural feature.



*Imported PLC computer control system with human-machine interface; touch screen is simple and

direct-viewing in operation;

*precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

*minimize the loss with complete automatic warn protection function;

*supported with metric device, the machine will automatically complete all packaging processes from me asuring, feeding, filling, bag making.

*The way of bag making: the machine can make pillow type bag and standing bag according to customer's requirements.



III. Multihead Weigher packing machine Technical parameter.



Items Content
Packing speed 25-80 bag/min
Bag size (L)50-250mm (W)40-150mm
Bag making mode Pillow-type bag, standing bag, punch
Range of measuring Max500ml
The maximum width of packing film 320mm
Thickness of film 0.04-0.08mm
Air consumption 0.3m3/min 0.6Mpa
Main power/voltage 2.2KW/220V 50-60Hz
Dimension L1300×W820×H1400mm
The weight of switchboard 250kg



IV. The main components and brand of this machine as following:



Number Name Brand Country
1 Touch sensitive screen WEINVIEW TAIWAN
2 PLC MITISUBISHI JAPAN
3 Servo motor PANASONIC JAPAN
5 Vertical cylinder SMC JAPAN
6 Cutting cylinder SMC JAPAN
7 Two units system SNS TAIWAN
4 Horizontal cylinder SNS TAIWAN
8 Solid state relay FOTEK TAIWAN
9 Intermediate state relay OMRON JAPAN
10 Photoelectric eye AUTONICS KOREA
11 Power MW TAIWAN
12 Transducer HONGQUAN CHINA
13 winding motor VTV TAIWAN
14 Thermometer control OMRON JAPAN

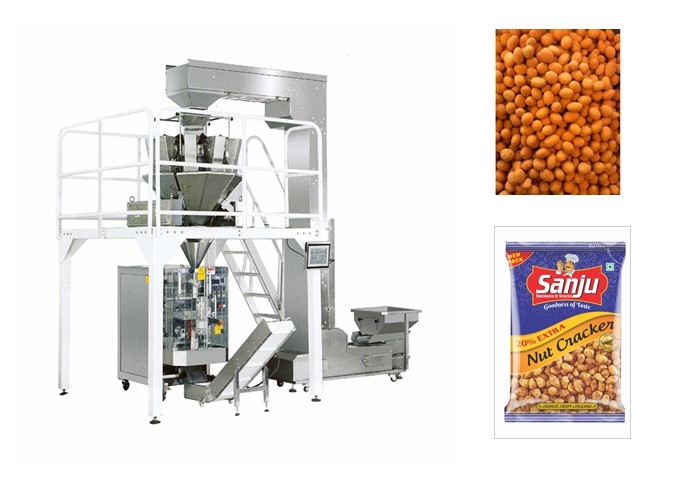

Automated Feeding Weighting Packing Machine For Puffed Food Potato Chips 0Automated Feeding Weighting Packing Machine For Puffed Food Potato Chips 1
