Stainless Steel 280 Automatic Pillow Packing Machine For Biscuit

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-280C
Minimum Order Quantity 1 piece
Price USD 6500
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Material Wood Conditon New
Function Wrapping Packiaging Type Bags
Automatic Grade Automatic Power 2.5kw
Voltage 380V Machine Material Stainless Steel
High Light

automatic powder packing machine


automatic blister packing machine

Leave a Message
Product Description

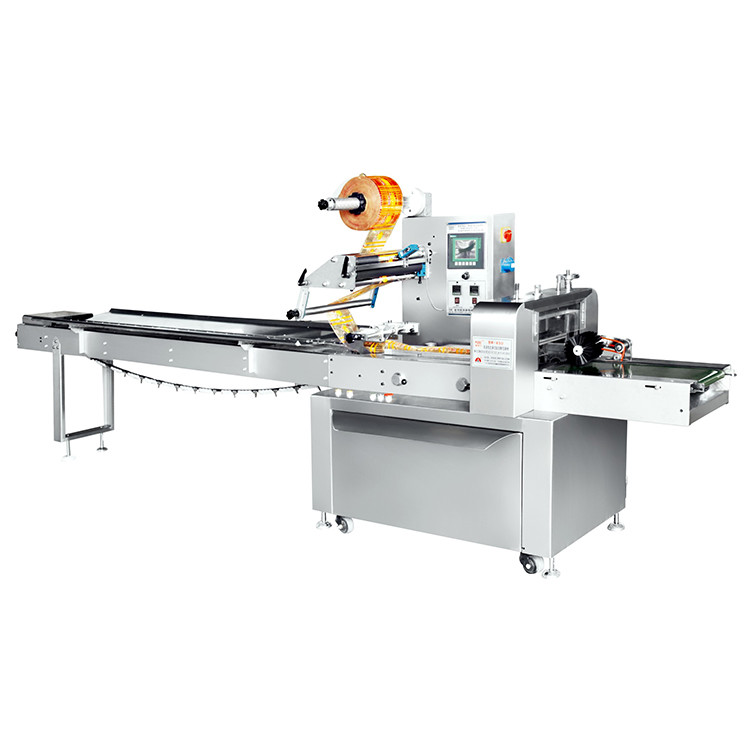

280 automatic pillow packing machine for biscuit



1. Characteristics :


1) The machine uses servomotor, flexible bag length cutting operator need not to adjust the unloading working saving time and films.

2) Human-machine operation, convenient and quick parameter setting.

3) Self diagnosis failure function, clear failure display.

4) High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.

5) Separate PID control to temperature, suitable for various packing materials.

6) Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7) Simple driving system, reliable working, convenient maintenance.

8) All the controls are achieved by software, convenient for function adjusting and upgrading.


2. Application:


Suitable for packing regular objects such as biscuit, egg pie ,bread, chocolate, candy, instant noodle, moon cakes, hardware, daily consuming ware, industrial parts, paper box or trays.


Main technical parameter:


Model HTL-280C
Film width Max.240mm
Bag length 65190mm 120280mm
Bag width 30110mm
Product height Max.40mm
Film diameter Max.280mm
Packing speed 40280bag/min
Voltage 220V/50HZ
Power 2.5kw
Dimension (L)4000×(W)950×(H)1450mm
Total weight 650Kg
Remark With air filling and printer device(can choosing)


Stainless Steel 280 Automatic Pillow Packing Machine For Biscuit 0
