Small Bag Coffee Sealing And Packing Machine With CPU Controller System

  • Small Bag Coffee Sealing And Packing Machine With CPU Controller System
  • Small Bag Coffee Sealing And Packing Machine With CPU Controller System
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-388
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Machine Material 304# Stainless Steel & Carbon Controller System CPU Or PLC
Filling Range 20-200ml (50-250g For Chili Powder) Measuring Auger Measuing
Key Selling Points Easy To Operate
High Light

automatic bag packing machine

,

automatic blister packing machine
Leave a Message
Product Description

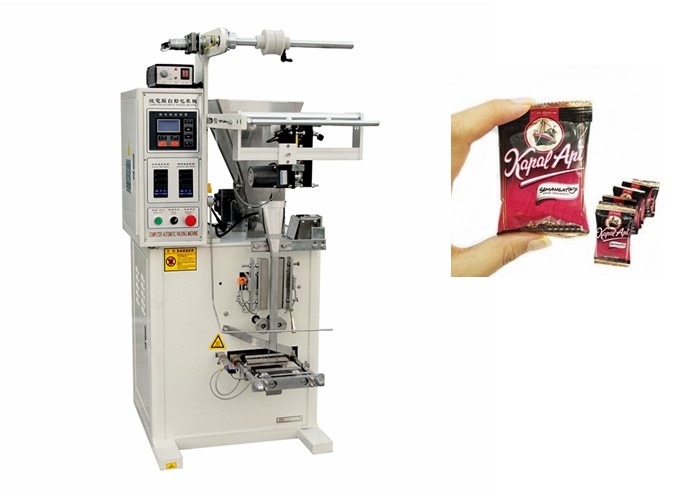

Automatic small bag coffee sealing and packing machine





Application



Powder packaging machine widely applied for Flour, Milk, Hean powder, Seasoning, mask powder, fruit powder, medicines powder, Health food etc.



Features



1.Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintainance.





Technical Specifications between Dession similar machines



Model HTL-388A HTL-388B HTL-388C HTL-388D
Measuring Range 1 ~ 100ml 1~500ml 150~1500ml 150~2000ml
Packaging Speed 30 ~ 80bags/min 10-60bags/min 5~60bags/min 10~50bags/min
Bag Width 15 ~ 100mm (W) 50-150mm (W) 60~200mm(W) 80~250mm (W)
Bag Length 30 ~ 180mm (L) 40-200mm (L) 80~300mm(L) 80~350mm (L)
Film Roll Width Max.30 ~ 220mm Max.320mm Max.420mm Max.520mm
Machine Size (L)640 x (W)700 x (H)1580mm (L)1100 x (W)755 x (H)1540mm (L)2717*(W)1080*(H)1941mm (L)2717*(W)1080*(H)1941mm
Machine Weight 300KG 350KG 750KG 780KG



Optional device for your choose:



1. Date Coder

2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)

3. Linking bag control device

4. Air-filling Device

5. Air Exhaust Device

6. Tear Notch Device
5. Nitrogen inflation device
6. Gusset bag



Small Bag Coffee Sealing And Packing Machine With CPU Controller System 0Small Bag Coffee Sealing And Packing Machine With CPU Controller System 1





Packaging Details

1)Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
