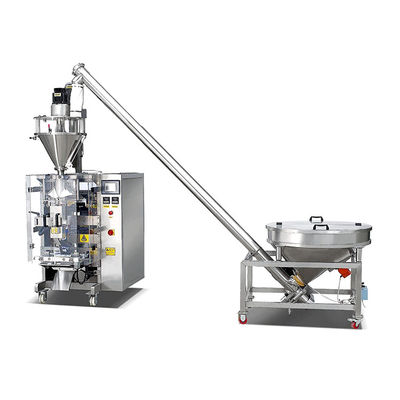

Reliable Auger Powder Filling Machine Automatic Film Rectifying Deviation Function
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-D420 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | wooden case package |
| Delivery Time | 60days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Capacity | 30-60 Bag/min | Bag Size | (L)80-300mm (W)80-200mm |
|---|---|---|---|
| Bag Type | Pillow-type Bag, Standing-bevel Bag, Punch Bag | Filling Range | 50-1000ML |
| Max Film Width | Max 420mm | Film Thickness | 0.04-0.09mm |
| Air Consumption | 0.8Mps 0.4m3/min | Main Power/voltage | 2.5KW/ 220V 50Hz |
| Dimension | L1500*W1140*H1540mm | Weight | 540kg |
| High Light | automatic bag packing machine,automatic powder packing machine |
||
Product Description

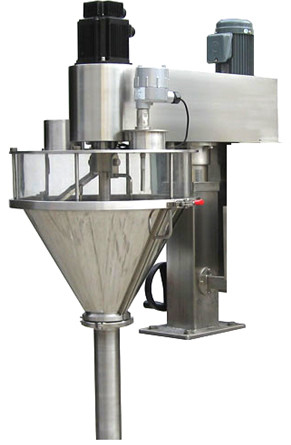

Screw Powder Automatic Packaging Machine
Characteristics:
1. Film drawing down system controlled by servo motor.
2. Automatic film rectifying deviation function.
3. Various alarm system to reduce waste.
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
Application:
It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.
Main technical parameters:
| Model | HTL-D420 |
| Packing speed | About 30-60 bags/min. It is according to quality of wrapping film and materials. |
| Accuracy | ≤1.5% |
| Bag size | (L) 80-300 mm; (W)80-180 mm |
| Maximum film width | 420 mm |
| Filling range | 50-1000 g |
| Film thickness | 0.04-0.09 mm |
| Packing material | Thermal composite materials, such as BOPP/CPP, PET/AL/PE |
| Air consumption | 0.8 MPa, 0.4 m³/min |
| Total power | 5 KW |
| Voltage (V) | Four wires, three phases, 380V, 50Hz. |
| Air compressor | Not less than 1 CBM |
| Total height | 2528 mm |
| Gross weight | 900 kg |
Our Services
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3, From the date of the Buyer receipt the machines, free warrant for 12 months.
