Multihead Weighter Automatic Food Packing Machine / Candy Wrapping Equipment
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-V420/V520/V680 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | wooden case package |
| Delivery Time | 60days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Bag Length (mm) | 80~300,80`400,100~480 | Bag Width (mm) | 50~200,80~250,180~320 |
|---|---|---|---|
| Max Width Of Roll Film (mm) | 420,520,680 | Packing Speed (bags/min) | 5~60,5~50,5~50 |
| Measuring Range (ml) | 150~1200 3000 (Max) 6000 (Max) | Air Consumption (Mpa) | 0.65 |
| Gas Consumption (m³/min) | 0.3 0.4 0.4 | Power Voltage (V) | 220V 220V AC/50Hz 220V AC/50Hz |
| Power (KW) | 2.2 4 5 | Automatic Grade | Automatic |
| High Light | industrial food packaging equipment,snack food packaging machine |
||
Product Description

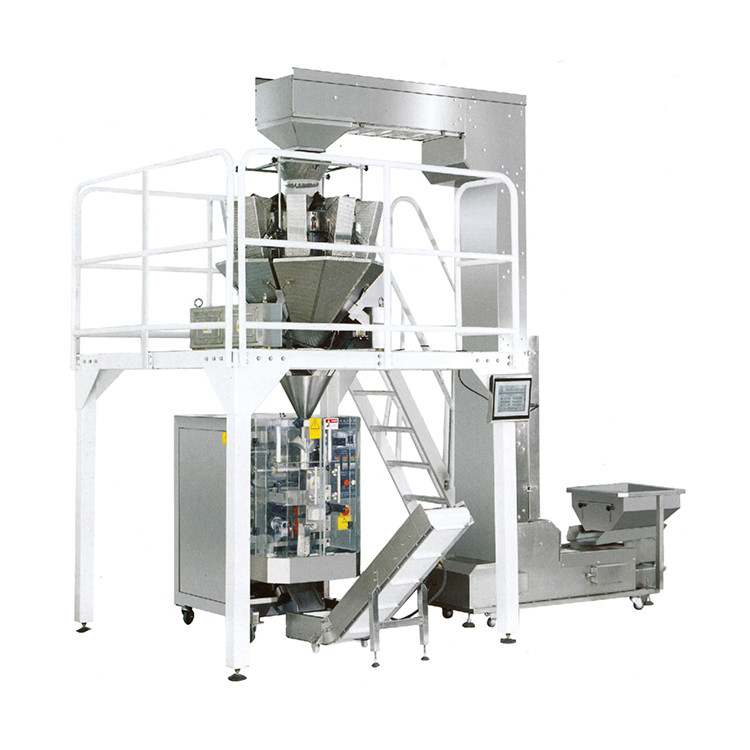

Large Vertical Automatic Packaging Machine HTL-V420/V520/V680
Characteristics:
PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.
Double servo control, high precision orientation, size more nicely.
External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
Close down type mechanism, defending powder into inside of machine.
Multihead weighter measuring, packing weight more precision, product cost more low.
Application:
It is suitable for packing of several of granule, slice, stripe, such as candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.
Main technical and Price:
| Model | HTL-V420 | HTL-V520 | HTL-V680 |
| Bag length (mm) | 80~300 | 80`400 | 100~480 |
| Bag width (mm) | 50~200 | 80~250 | 180~320 |
| Max width of roll film (mm) | 420 | 520 | 680 |
| Packing speed (bags/min) | 5~60 | 5~50 | 5~50 |
| Measuring range (ml) | 150~1200 | 3000 (Max) | 6000 (Max) |
| Air consumption (Mpa) | 0.65 | 0.65 | 0.65 |
| Gas consumption (m³/min) | 0.3 | 0.4 | 0.4 |
| Power voltage (V) | 220V | 220V AC/50Hz | 220V AC/50Hz |
| Power (KW) | 2.2 | 4 | 5 |
| Dimension (L*W*H) (mm) | 1320*950*1360 | 1150*1795*1650 | 1780*1350*1950 |
| Weight (kg) | 540 | 600 | 900 |
Our Services
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
