Multifunctional Horizontal Pillow Packing Machine 4200mm × 1250mm × 1750mm

Place of Origin Jiangsu, China (Mainland)
Brand Name haitel
Certification CE ISO9001
Model Number HTL-350/450/550
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case package
Delivery Time 60days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Packaging Film Width 350mm/450mm/550mm Bag Length 90-220/150-320mm 130-360mm 180-440mm
Bag Width 50-170mm 50-260mm Product Height 40mm /50mm/100mm
Film Roll Diameter 300mm Packing Speed 50-250bag/min 40-200bag/min 30-200bag/min
Voltage Specification 220V/380V 50HZ Power Specifications 3kw
Machine Size (L)4200×(W)1250×(H)1750mm Total Weight 1000Kg
Remarks Can Be Equipped With Inflatable, Coding Device
High Light

industrial food packaging equipment


food product packaging machine

Leave a Message
Product Description

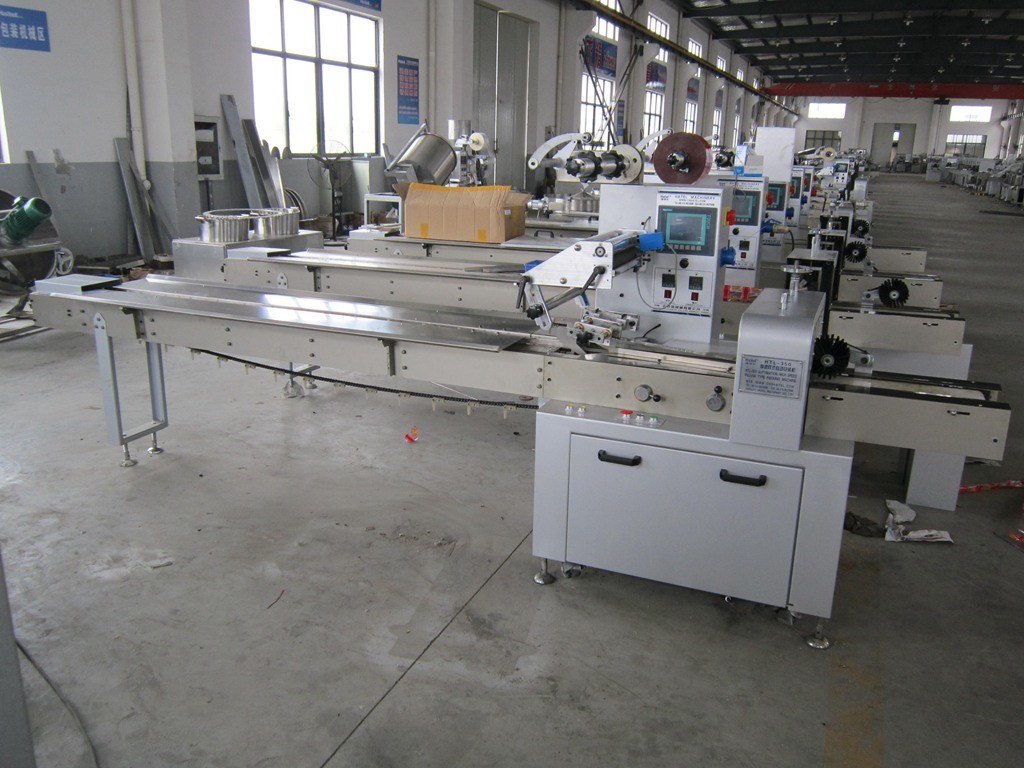

Pillow Type Multifunctional Automatic Packaging Machine HTL-350/450/550






1 . Double inverter control (optional servo motor), the bag length can be set and cut, no need to adjust the air, one step in place, saving time and film.

2.  Human-machine interface, parameter setting is convenient and fast.

3.  Fault self-diagnosis function, the fault display is clear at a glance.

4.  High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.

5.  Temperature independent PID control, better suited to a variety of packaging materials.

6.  Positioning stop function, no sticking knife, no waste film.

7.  The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8.  All control is realized by software, which is convenient for function adjustment and technical upgrade, and keeps advanced.
Model HTL-350 HTL-450 HTL-550
Packaging film width Max.350mm Max.450mm Max.550mm
Bag length 90-220/150-320mm 130-360mm 180-440mm
Bag width 50-170mm 50-260mm
Product height Max.40mm Max.50mm Max.100mm
Film roll diameter 300mm 300mm 300mm
Packing speed 50-250bag/min 40-200bag/min 30-200bag/min
Voltage specification 220V/380V 50HZ
Power Specifications 3kw
Machine size (L)4200×(W)1250×(H)1750mm
total weight 1000Kg
Remarks Can be equipped with inflatable, coding device




Our Services


confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.


1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.
