Multifunctional Automatic Cookies Making Machine System Control Program

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO
Model Number HTL-420
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case package
Delivery Time 60days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Voltage 380V Power(w) 1.5kw
Warranty 1 Year Dimension(L*W*H) 2000*800*1300(mm)
Weight 650kg Application Fields Snack Food Factory
Raw Material Flour Material 304 Stainless Steel
High Light

industrial pastry machine


bakery rotary oven

Leave a Message
Product Description

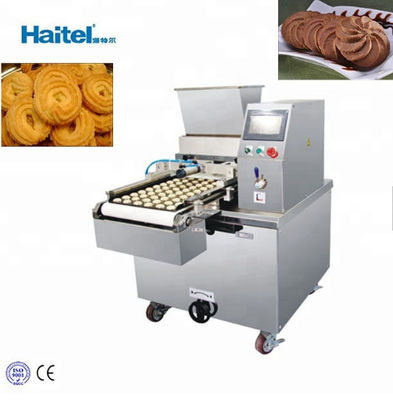

New style HTL-420 Multi-functional cookie making machine






Walnut biscuit is a traditional Chinese biscuit which called Taosu biscuit that is favored by people of all ages particularly in leisure time or tourism. The demand for this food has been increasing since it came into the market for the first items. However, up to now, it is mainly produced by hand, which can not increase its output quickly enough to meet rising demand and its quality can not be assured, either. For this reason, after years of research, we have developed this unique automatic walnut biscuit machine that is a special design for the production of walnut biscuit. Assisted by system control program, the machine is easy to operate and maintains the natural taste of the walnut biscuit by 100%.


Technical data


capacity 200-250kg/h
Printing Roller Diameter 248mm
Power 1.5kw
Size 2000*800*1300(mm)
Weight 650kg
Voltage 380V/50Hz


HTL-100 Rotary Oven




Being a key equipment in the bread/cake production line,the rotating oven of hot wind circulateon is the most advanced food-making equipment in China today,which is most suitable to and effective in the making of high quality bread.It can be divided into two types.They are the diesel combustion and electrical heating.The outer casing and inner cabin are made of stainless steel,clean and hygienic.This machine applies-rotating roller,making the whole food evenly hated.In addition the oven so as to meet the standards required,After baking for some time the bread/cake will be made well,full of elasticity,soft,fresh and deliciouss.

Technical data





Baking Time


Temp Range℃





appearnce size



Heating Part
HTL-100 100 15-30 20-300 56 2400*1800*2500 1250 Electric Heating
HTL-100 100 15-30 20-300 3.5 2400*1800*2500 1250 Burner




HTL-280BAutomation High Speed Pillow Type Packaging Machine




      1.  servomotor,flexible bag length cutting,operator needn’t to adjust the unloading working,saving time and



2.Human-machine operation,convenient and quick parameter setting.


     3. Self diagnosis failure function,clear failure display.


     4. High sensitivity optical electric color mark tracing,digital input cut position which makes the sealing and cutting more accurate.


     5. Separate PID control to temperature,suitable for various packing materials.


     6. Stopping the machine in selected position,no sticking to the knife and no waste packing film.


     7. Simple driving system,reliable working,convenient maintenance.


    8. All the controls are achieved by soflware,convenient for function adjusting and upgrading.


Scope of application


It is applicable to all kinds of solid regular article packing for biscuit, bread, mooncake, candy, daily consuming ware, hardware and machine parts, paper box or tray.




Packing speed ≤280bag/minute
Bag length 90-220150-330
bag width 30mm-120mm
Width of paper ≤280mm
Height ≤40mm
Voltage 220V/50HZ
Power 2.8kw
Dimension(L*W*H) 4000*950*1450(mm)
Net weight 650kg



Our Services


confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.


1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.


Multifunctional Automatic Cookies Making Machine System Control Program 0Multifunctional Automatic Cookies Making Machine System Control Program 1
