Industrial Small Granulate Roasted Peanut Pouch Packing Machine

  • Industrial Small Granulate Roasted Peanut Pouch Packing Machine
  • Industrial Small Granulate Roasted Peanut Pouch Packing Machine
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL-V420
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Filling Range 5~1500g Equipment Material 304 Stainless Steel
Product Name Auto Packing Machine Packing Speed 20~55bags/min
Dimension(L*W*H) 1475*1325*1480mm Voltage 380V
Driven Type Electric Automatic Grade Automatic
High Light

automatic powder packing machine

,

automatic blister packing machine
Leave a Message
Product Description

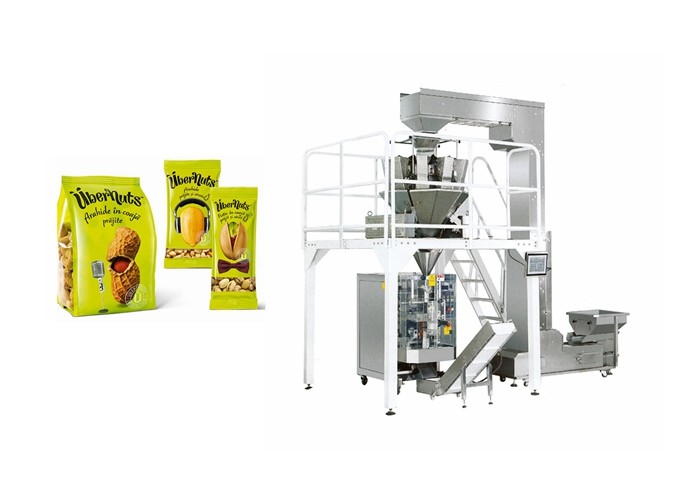

Small Granulate Roasted Peanut Pouch Packing Machine





Performance and features



1.wide applications: various state and nature of solid (granule);

2.A wide range of pouches: all kinds of pre-made pouches;

3.Easy to operate: PLC controller, HMI system makes easy operation;

4.Easy to adjust: change different pouches within 10 minutes;

5.High automation: unmanned in weighing and packing process, machine alarm automatically when failure;

6.Perfect prevention system: when the bag is not opened or not opened completely, it will be non-filling and non-sealing, so the bags can be reused and the product is not wasted thus save the production cost;

7.The product contact parts are adopted SUS304 to ensure sanitation and safety, meet the GMP standard;

8.Imported engineer plastic bearings, no need to oil, no contamination

9.Vacuum generator: low consumption, high efficiency, cleaness, and long useful life;

10.Pre-made bag packing:perfect sealing quality, upgrade the finished product.





Technical parameters



Equipment model
HTL-V420
Equipment material
304 stainless steel
Pneumatic component
SMC,AirTAC
Vacuum component
Vacuum generator (SMC)
Drive mode
Frequency conversion motor drive
Measuring type
Multi-head computer weigher
Operation interface
Touch screen(double language:Chinese and English)
Bag materials
Heat sealable film as PA/PE,PET/PE,AL film etc.
Bag size
W:70~200mm L:100~300mm (date coding requires≥140mm length)
Filling range
5~1500g
Packing speed
20~55bags/min (depended on the product and filling weight)
Package accuracy
Error≤±1%
Weight
RZ6-200:800kg

RZ8-200:1000KG
Dimension
RZ6-200:1475*1325*1480(L,W,H)

RZ8-200:1635*1455*1480(L,W,H)
Total power
RZ6-200:1.5kw

RZ8-200:2.3kw
Driving power source
380V Three-phase Five-line 50HZ
Control power source
DC24V
Compress air requirement
≥0.45m³/min (compress air is provided by user)







Samples Making



Industrial Small Granulate Roasted Peanut Pouch Packing Machine 0
