Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting

  • Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting
  • Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting
  • Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting
  • Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL-280B
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case package
Delivery Time 15days
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Type Packaging Line Condition New
Power 2.5kw Voltage 380V 50HZ
Dimension(L*W*H) 4000*950*1450 Mm Weight 650KG
Product Size (mm) L: 40-300, W: 20-70, H:3-30 Production Capacity Max 150-350 Bags/min
High Light

candy pillow pack machine

,

candy roll wrapping machine
Leave a Message
Product Description

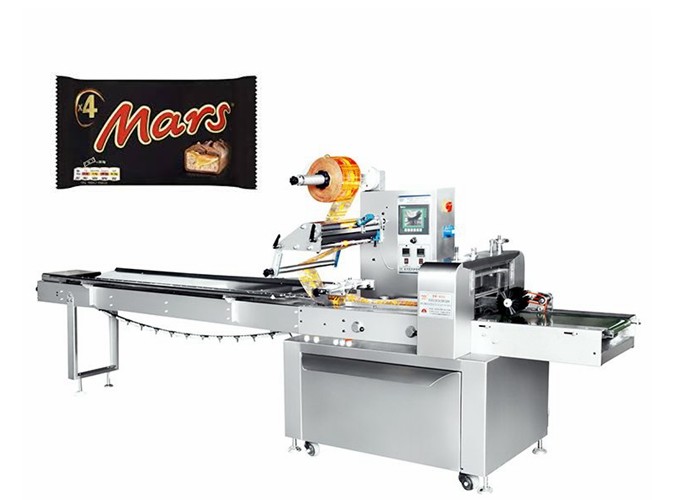

Automatic Ice-Cream Candy Pillow Horizontal Packing Machine





Specifications:

Model HTL-280B HTL-280C HTL-280D
Film width Max.280mm Max.240mm
Bag length 90-220/150-330mm 65-190mm/120-280mm 90-220mm
Bag width 50-140mm 30-110mm
Product height Max.40mm Max.55mm
Rewind diameter Max.280mm
Packing speed 50-250bags/min 40-280bags/min
Voltage 220V/380V 50HZ
Power 2.5KW
Dimension (L)4000 *(W)950*(H)1450mm
Total weight 650kg





Characteristics:

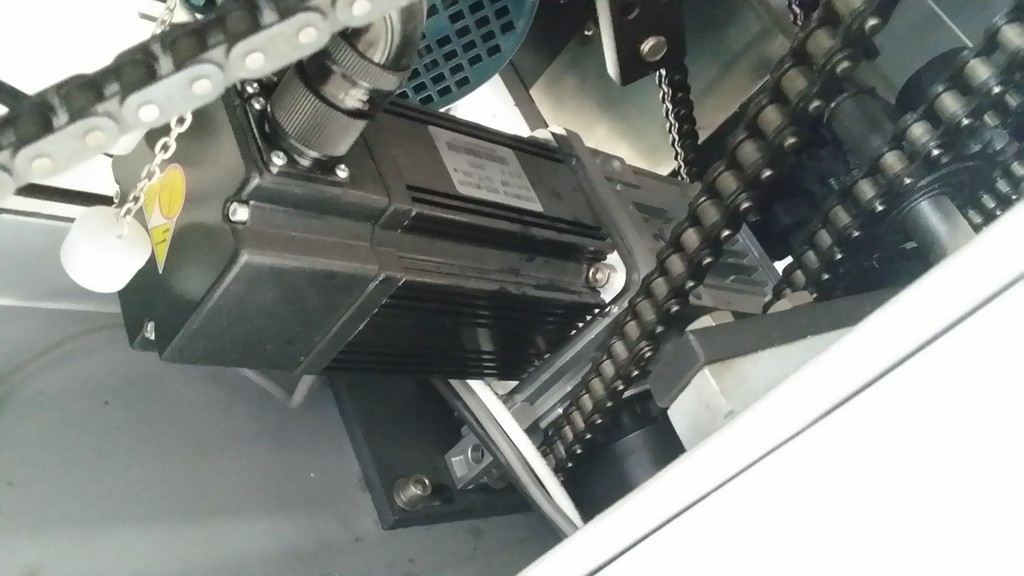

① It uses servomotor, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and films.



② Human-machine operation, convenient and quick parameter setting.



③ Self diagnosis failure function, clear failure display.

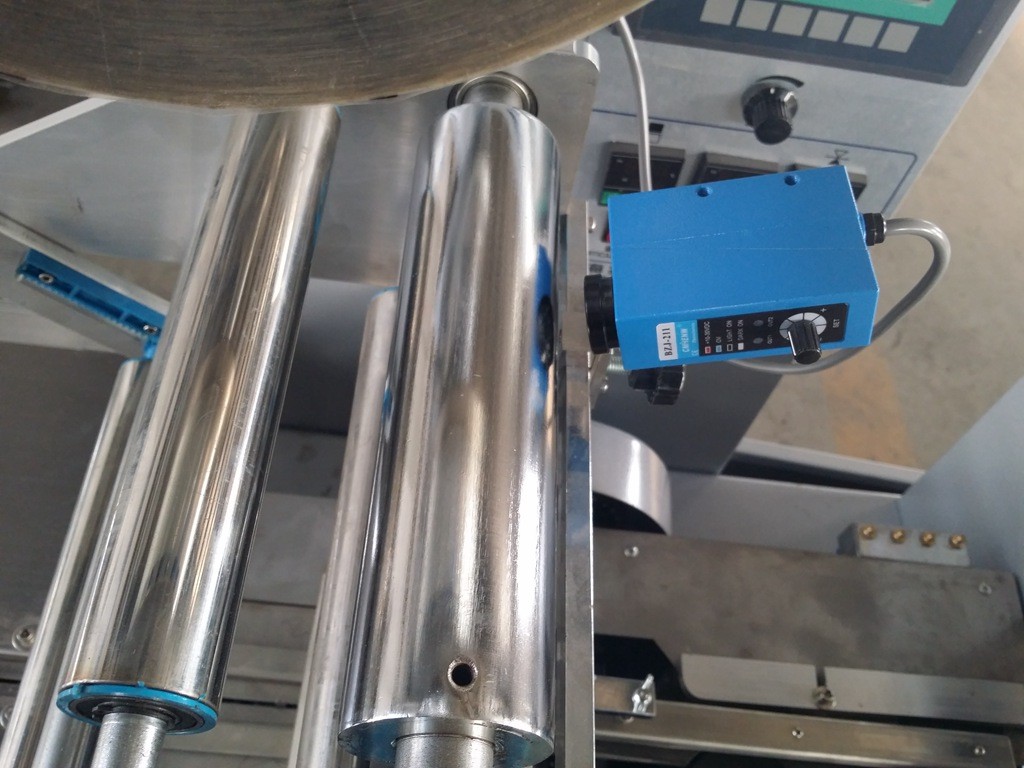

④ High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.



⑤ Separate PID control to temperature, suitable for various packing materials.



⑥ Stopping the machine in selected position, no sticking to the knife and no waste packing film.



⑦ Simple driving system, reliable working, convenient maintenance.



Application:



The machine is suitable for packing the regular shape products in box or tray such as moon-cake, popping-rice-cake, pie, chocolate, candy, bread, instant noodle, biscuits, pills, groceries, and industrial parts.



Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting 0



Remark:

1. With optional air filling and printer device (can be choosed);

2. For different specifications of the machines, choose from: HTL- 280B, HTL-280C, HTL-280D, HTL-280E.











Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting 1

Horizontal Ice Cream Candy Packing Machine Flexible Bag Length Cutting 2
