Haitel Automation Lower Paper Feeding Packaging Machine Film Thickness 18-80um

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-480B
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty One Year Application Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Material Plastic Condition New
Voltage 220 V Film Thickness 18-80um
High Light

candy manufacturing machine

,

hard candy making equipment

Leave a Message
Product Description



Automatic Paper Cup Packaging Machine



Product Description

1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.



Applications:
Food : cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers,
Hardwares : hinge, stainless steel pipe, bearings , screw, nuts and washer, etc
Hotel Supplies : soap, disposable comb, tooth paste and brush in one set.
Stationary : pencil, eraser, notebook, paper card, adhensive tape
Electric Products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : face mask, glove, gauze, capsule, disposable syringe.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin, baby diaper, etc.

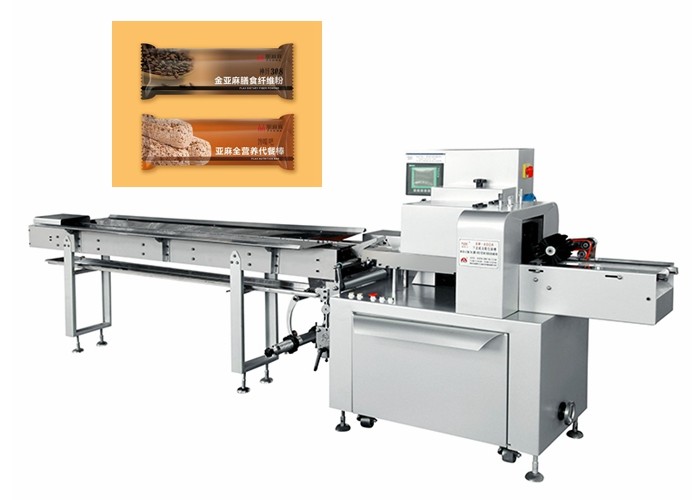

Haitel Automation Lower Paper Feeding Packaging Machine Film Thickness 18-80um 0

Type HTL-480A HTL-480B HTL-480AB
Film Width Max.400MM Max.450MM Max.600MM
Bag Length 150-400MM 150-450MM 160-500MM
Bag Width 50-180mm 50-180mm 50-280mm
Products High max.65mm max.75mm max.110mm
Packing Speed 30-150bag/min 30-150bag/min 20-150bag/min
Power

220V 50/60HZ

2.8KW

220V 50/60HZ

2.8KW

220V 50/60HZ

2.8KW

Machine Size(mm) 4020x770x1420 4020x820x1420 4020x970x1500
Machine Weight 600kg 650kg 680kg
