Grain Coffee Pouch Weighing And Packing Machine High Speed 10-60 Bags / Min

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-V420
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Voltage 380/220V Power 2.2KVA, 220V,50/60HZ,2.2KVA
Packing Speed 10-60bags/min Net Weight/Gross Weight 950kg/1000kg
After-sales Service Provided Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas Film Roll Width 600mm
High Light

automatic pastry making machine

,

industrial pastry machine

Leave a Message
Product Description

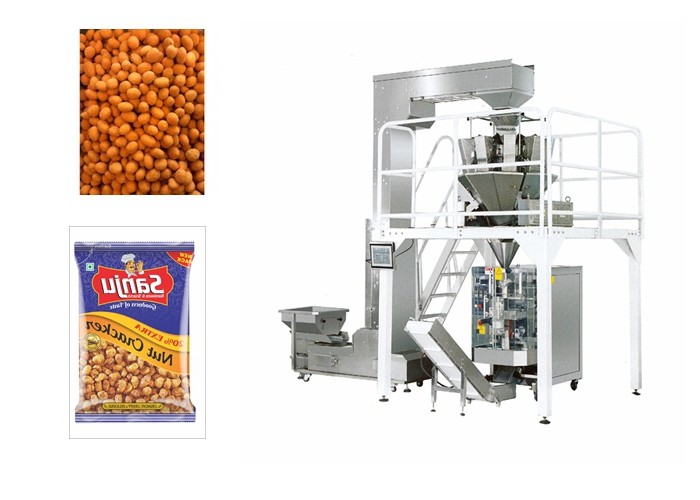

Electric High Speed Grain Coffee Pouch Weighing and Packing Machine





1. The 10 head Automatic weighing packaging machine can automatically complete the products of fasteners conveying, measuring, filling,bag making, date printing, heat sealing and cutting etc.



2. Servo motor driving system is adopted in the packaging machine.



3. To ensure the same lengthe of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.



4. The packaing machine is equuipped with a computer control system.



5. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.



6. The electroic and pneumatic components of the machine are all supplied by reliable supplier copperating with us for several years, which can ensure the quality of machine and save the cost of purchese meantime.



7. The bag size and packaging number can be customized by customers.





Application rang of packaging



Suitable for 150-1000g snack, potato chips, banana chips, rice popcorn, chocolate chips, rice, grain, granule, seeds, beans, nuts, cashew, Popcorn, nut cracker, dry fruit, sunflower kernels, corn beans, puffed food, crispy rice, meat ball, hardware, medicines, vegetable salad and so on.



Technical Parameters





Machine Type HTL-420
Film roll width Max.420mm
Bag length 80-300mm
Measurment rang 150-1500ml
Packing speed 10-60bags/min
Roll fim Diameter Max.320mm
Packaging film thickness 0.04-0.08mm
Powder 220-380v, 50/60HZ, 3.6KVA
Machine weight 950kg
Packaging Materail

Laminated heat-sealing plastic film.

Like OPP/CPP,OPP/CE, PET/PE ETC.

Bag type Standard Pillow Sealing Pouch bag,Gusset bag, Bottom Bag, Stand-up bag with handle or Euro-slot.
Optional Device Doulble Film Pulling Device, Angle of plug-in Device, Automatic Correst Device, Linking Bags Device, Punching Device, Fillling Gas Device.
