Electronic Commercial Coffee Powder Packing Machine Fully Automatic

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-388
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty 12 Months Application Food, Medical, Chemical, Machinery & Hardware
Packaging Material Plastic, Paper Condition New
Function Filling, Sealing Driven Type Electric
High Light

automatic powder packing machine

,

automatic blister packing machine

Leave a Message
Product Description



Fully automatic coffee powder packing machine



Electronic commercial fully automatic coffee powder packing machine







Specification:



Powder Packing Machine
Name Powder Machine
Model DXD-50F
Filling Auger Filler
Bag style Back seal, 3-sides seal,4-sides seal
Volume 1-150 ml
Bag size L50-120mm W40-85mm
Speed Max 75bags/min
Control style PLC control system + Chinese/English screen
Body shell Sheet steel spray painted / Stainless steel
Power Main motor 370W, heating power 720W
Power supply AC 220V single-phase 50Hz
Weight N.W170kg, G.W200kg
Dimension L750mm W700mm H1700mm
Film Material Paper/polyethylene, cellophane/polyethylene, plated aluminum/polyethylene, BOPP/polyethylene, nylon/polyethylene
Article It can be used to pack powder, like milk powder, flour, soybean powder, medicine powder, etc.
Main function DXD series automatic filling and packing machines can automatically measure,
make bags, fill, seal, cut, print codes and make easy tearing notches.



Optional function devices:



1. Date Printer

2. Tear notch device
3. Linking bag control device
4. Air exhaust device
5. Nitrogen inflation device
6. Triangle package



Characteristic:



1. English and Chinese screen display ,operation is simple .

2. PLC computer system , function is more stable , adjustment any parameters not need stop machine.

3. It can stock ten dispose , simple to change variety.

4. Sever motor drawing film , position accurately.

5. Temperature independent control system ,precision get to±1°C.

6. Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.

7. Packing type diversification , pillow sealing, standing type ,punching etc.

8. Bag–making , sealing, packing, print date in one operation.

9. Work circumstance quiet, low noise.



Working Principle:Forming,Filling and Sealing

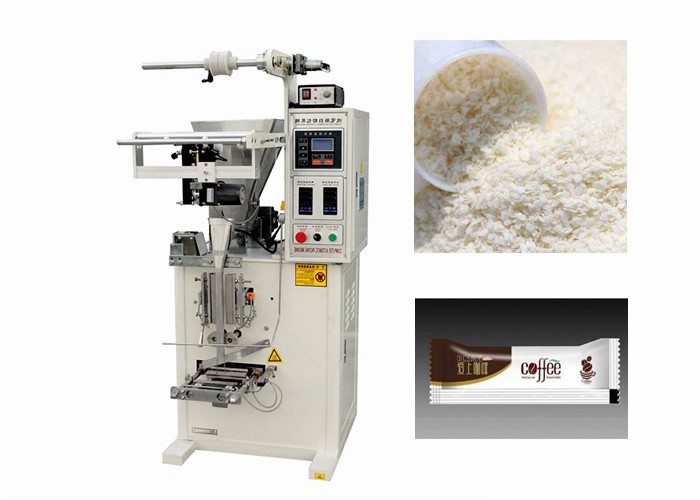

Electronic Commercial Coffee Powder Packing Machine Fully Automatic 0

Electronic Commercial Coffee Powder Packing Machine Fully Automatic 1
