Chocolate / Coffee Powder Wrapping Machine Full Automatic PLC Control

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-D420
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Warranty 1 Year Application Powder
Packaging Material Plastic Type Multi-Function Packaging Machine
Condition New Function Filling, Labeling, Sealing, Wrapping
Automatic Grade Automatic Driven Type Electric
High Light

automatic chocolate packing machine

,

chocolate packaging equipment

Leave a Message
Product Description

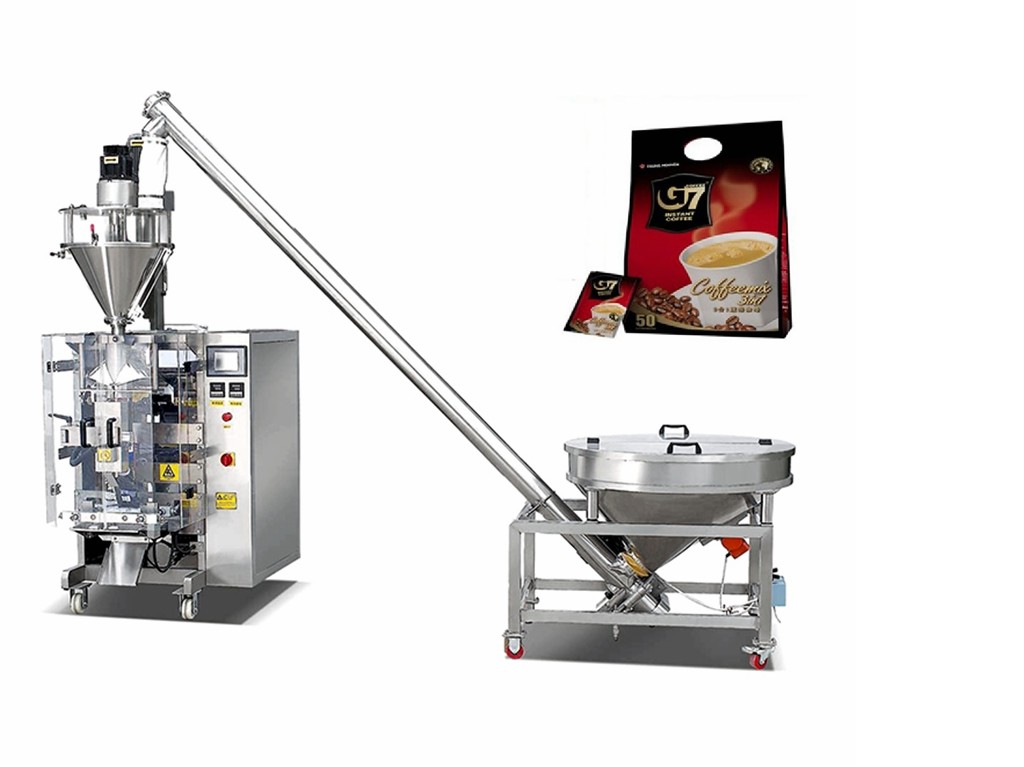

Full automatic coffee powder wrapping machine manufacturer




Characteristic:

  1. 1. PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, be finished in one operation.
  2. 2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
  3. 3. Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance. Belt is resistant to be worn-out.
  4. 4. Double servo control, high precision orientation, size more nicely.
  5. 5. External film releasing mechanism: simpler and easier installation of packing film.
  6. 6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
  7. 7. Close down type mechanism, defending powder into inside of machine.
  8. 8. Multi-head weighter measuring, packing weight more precision, product cost more low.
Application:


It is suitable for packing of several of granule, slice, stripe, such as grain,candies, potato chips, shrimp chips, jelly, peanut, hardware, etc.


Samples Making:

 Specifications:



Model HTL-D420 HTL-D520
Packing speed About 30-60 bags/min, according to quality of wrapping film and materials. About 30-60 bags/min, according to quality of wrapping film and materials.
Accuracy ≤1.5% ≤1.5%
Bag size (L) 80-300 mm; (W)80-180 mm (L) 80-350 mm; (W)100-250 mm
Maximum film width 420 mm 520 mm
Filling range 50-1000 g 150-2000 g
Film thickness 0.04-0.09 mm 0.04-0.09 mm
Packing material Thermal composite materials, such as BOPP/CPP, PET/AL/PE Thermal composite materials, such as BOPP/CPP, PET/AL/PE
Air consumption 0.8 MPa, 0.4 m³/min 0.8 MPa, 0.4 m³/min
Total power 5 KW 5 KW
Voltage (V) Four wires, three phases, 380V, 50Hz. Four wires, three phases, 380V, 50Hz.
Air compressor Not less than Not less than 1 CBM
Total height 2528 mm 2528 mm
Gross weight 900 kg 900 kg
