Automitic Square Chocolate Packaging Machine Frequency Control Speed

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO
Model Number HTL-1000-Z360
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10 Set/Sets per Year
Product Details
Packaging Type Bags, Foil After-sales Service Provided Engineers Available To Service Machinery Overseas
Wrapping Speed 100~300 Pieces/minute Film Width 55~150 Mm
Voltage 380 V 50 Hz Power 3.5 KW
Dimension (L*W*H) 6800×1400×1750 Mm Products Size (L)=30~95 Mm (w)=20~50 Mm (H)=6~10 Mm
High Light

automatic chocolate packing machine


chocolate packaging equipment

Leave a Message
Product Description

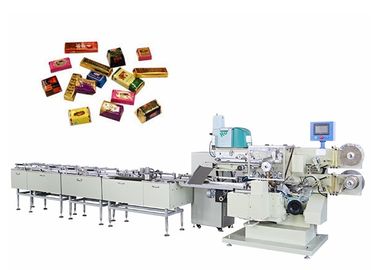

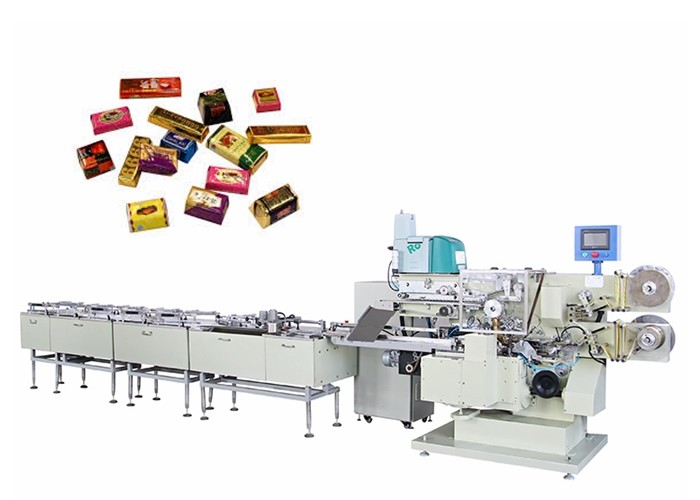

Automitic square chocolate and Hard candy Fold-wrapping machine



Main characteristics:


 Frequency control speed, cell photo electricity automatic tracking, with low noise operation, it can autostop when breakdown.


 It is automatic folding packing with strike band and sealing.


 This machine has the characteristics of large packing range, firm, clear, flexible, fast packaging, the construction is compact, runs stably.


 With PLC big colorized touch screen, menu operation, simple, parameter display intuitive.


 It is automatic adjust machine packing speed by products quantity.


 The computer control the paper inset automatically, 100% packing efficiency, no missing package.


 No candy, no paper. The machine stops when candy jam appears or the door opens. Thus the machine smoothly running and  operator’s safety is guaranteed.


 Self diagnosis failure function, clear failure display.


 Separate PID control to temperature, suitable for various packing materials.


 All the controls are achieved by software, convenient for function adjusting and upgrading.


 Modular design and advanced technology are introduced to make machine maintenance and cleaning work easy.


 Save labor and at the same time, improve the production efficiency greatly, thereby, cut down the cost for the production unit.




This machine is especially suitable for special size and shapes of products, using the envelope type folding packing. It can be single or double foil aluminum packaging, such as chocolate, candy, wafers, coated foods and so on.


Main technical parameters:


Model HTL-1000-Z360
Products size

(L)=30~95 mm

(w)=20~50 mm

(H)=6~10 mm

Film width 55~150 mm
Wrapping speed

100~300 pieces/minute

(Based on the different size of products)

Voltage 380 V 50 Hz
Power 3.5 KW
Dimension (L*W*H) 6800×1300×1150 mm
Weight 1800kg


Automitic Square Chocolate Packaging Machine Frequency Control Speed 0

Automitic Square Chocolate Packaging Machine Frequency Control Speed 1


Our Services


confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.


1,  When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,  In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.  From the date of the Buyer receipt the machines, free warrant for 12 months.
