Automatic Cutting And Folding Packaging Machine For Caffeine Chewing Gum

  • Automatic Cutting And Folding Packaging Machine For Caffeine Chewing Gum
  • Automatic Cutting And Folding Packaging Machine For Caffeine Chewing Gum
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL-S808
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Application CANDY Packaging Material Plastic, Paper
Function Wrapping Automatic Grade Automatic
Driven Type Electric Voltage 380V/50Hz
Dimension(L*W*H) 1320 X 1210 X 1820mm Capacity 500pcs/min
High Light

candy manufacturing machine

,

candy bar wrapping machine
Leave a Message
Product Description

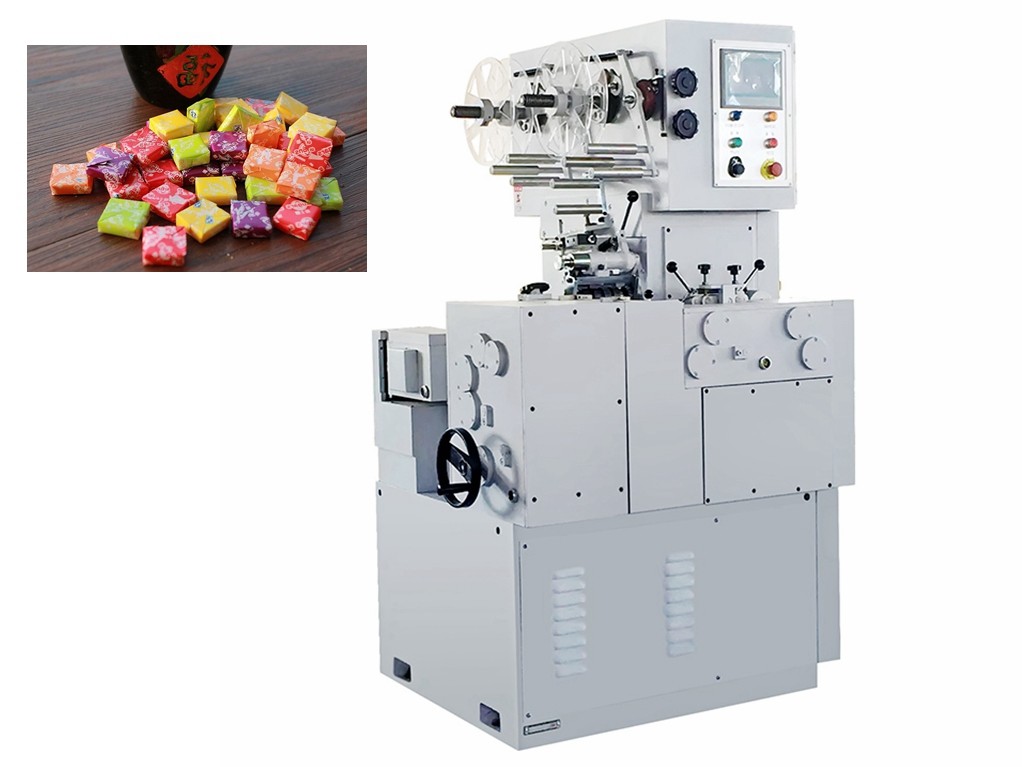

caffeine chewing gum automatic cutting and Folding packaging machine




The Cut & Wrap Candy machine is used for chewing gums, bubble gums, toffees, sugus and soft caramels, milky candies in cutting and wrapping or double twist wrap.

This Machine has several functions including candy rope sizing, cutting, single or double paper wrapping(bottom fold or end fold), double twist wrapping



Special features:



-no candy, no paper.
-Auto stop while candy blocks
-Packaging material auto positioning.
-Packing speed displayed and auto counted.
- Trouble , if any, displayed & machine auto stops.
-Double wrapper function ( inner wax paper).
-Parts can be easily and quickly open and fixed for maintenance and
cleaning.



Configuration:

  1. Motor: SEW , Power;2.2KW.

  2. Inverter Schneider Model;ATV31222N4;

  3. Contactor: Schneider

  4. Display screen : Schneider : N400.

  5. Paper moving motor: Omron MYZN-J;

  6. Eye-mark relay :Omron ;

  7. Eye-mark: Banner;

  8. Temp extension: Schneider TW3LT

Capacity :max 500pcs/min, depending one candy cutting length.
Candy Cutting Length :

-17-70mm


Power :4Kw
Utilities:

- water consumption: Approx.2.5L/min.;
-water temperature: 30℃
- Water pressure: 1.5 - 2kg/cm2

Wrapping materials:

- Wax paper
- Aluminum paper
- PET

Machine Size &Weight:

-Size : 1320 x 1210 x 1820mm
-Weight: 1250kgs


Spare parts included




  1. synchronous belt 1pcs;

  2. Paper cutter : 1set;

  3. Candy cutter : 2sets;

  4. Rubber ring for paper moving:4pcs,

  5. Heating pipe:1pcs;

  6. Thermocouple:1pcs;

  7. Candy receiver :1set;

  8. Candy pusher: 1set;

  9. Bearing 4900 : 2pcs.



Related Machines available :

1) Toffee production line;
2) Chewing gum line;
3) Bubble gum line.
