Automatic Candy Packaging Machine , Double Twist Packing Machine
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-S800 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | wooden case package |
| Delivery Time | Shipped in 7 days after payment |
| Payment Terms | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Production Capacity | 200-550p/min | Package Specifications (mm) | L：11-33 W：11-25 H：5-20 |
|---|---|---|---|
| Packaging Film Width | ≤120 Mm | Dimensions (L × W × H) | 1700*918*1475(mm) |
| Power Supply | 380V/50HZ | Total Power | 3kw |
| Total Weight | 1200kg | Automatic Grade | Automatic |
| High Light | candy pillow pack machine,candy roll wrapping machine |
||
Product Description
HTL-S360 Hot Sale Double Twist Candy Roll Wrapping Machine For Extra Large Product
Characteristics:
1. It applies for double twist packing candy with the shapes of rectangle, ellipse, waist-round, cylindrical, spherical, square and beef also all food with regular shapes, easy to operate, high efficiency, manpower saving, pretty style, low noise, working smoothly, low fault occurrence, convenient to repair.
2 . Main core part of this machine adopts imported, new style. High-density Cam indexing unit and cam gear can reach exact movement.
3. AC motor with transducer, controlled with infinite speed control, high precision, energy saving to prolong its life, also it can be adjusted when it is working.
4. Controlled by full auto built-in computer, inspected by international advanced photoelectric sensor, traced bi-directional with fast speed, 100% packing rate, no empty package.
5. Overload protection, breakage protection, no film with prompt alarming.
6. Food touch parts adopt stainless steel, good smoothness, easy to clean, and totally meets standard of food sanitation.
7. Single and double layers of wrapping paper are used.
8 . It can be equipped with auto hopper.
Application:

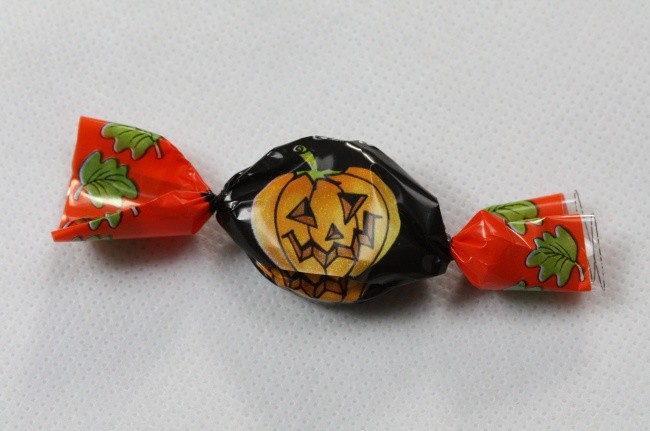

It is applicable to hard candy, Dabaitu creamy candy, toffee candy, rectangle, elliptic and column candy for double layer or single layer double-twisting packing.
Main technical parameters:
| Type | HTL-S800 |
| Packing speed | 200~550 pcs/min |
| Packing size | (L)=11~33 mm; (W)=11~25 mm; (H)=5~20 mm |
| Membrane width | ≤ 120 mm |
| Dimension (L*W*H) | 1700 × 918 × 1475 mm |
| Voltage | 380 V 50Hz |
| Total power | 3 Kw |
| Total weight | 1200 kg |
Spare Parts List (FREE):
| Item | Quantity |
| Transform gear | 5 |
| Knife | 1 |
| Small axes | 4 |
| Upping candy pole | 1 |
| Sprain Hand | 1 |
| Clip Claw | 2 |
| Clip Claw Rubber | 1 |
| Clip Claw Spring | 7 |
| Speed adjuster | 1 |
| Oil sealing | 1 |
| Tool box | 1 |
Our Services
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3. From the date of the Buyer receipt the machines, free warrant for 12 months.

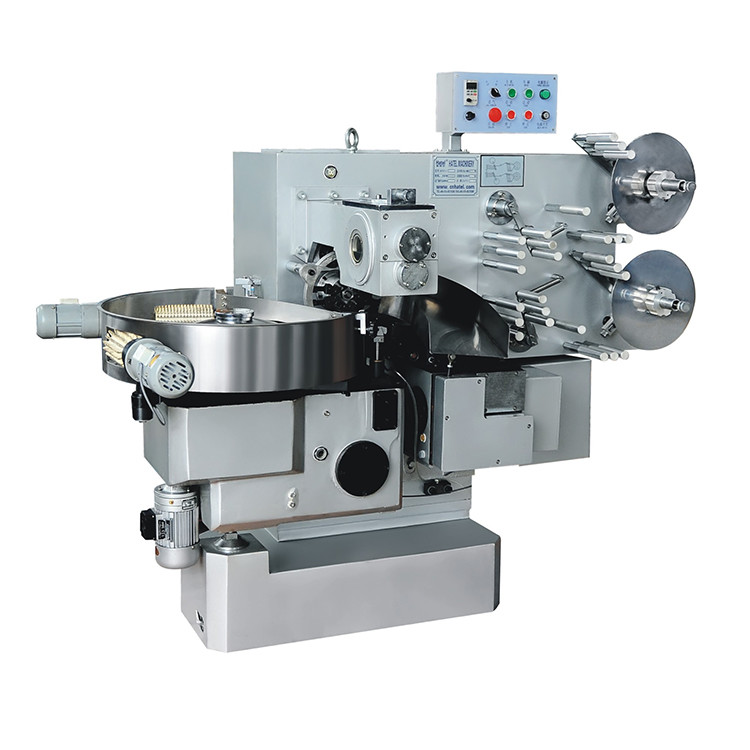

Machine Picture:
The machine body isn’t welded. It is integral pouring, thus reduce machine from shaking.
Candy feeding tray: Made of food standard SUS304, should be designed according to customer’s candy size.
