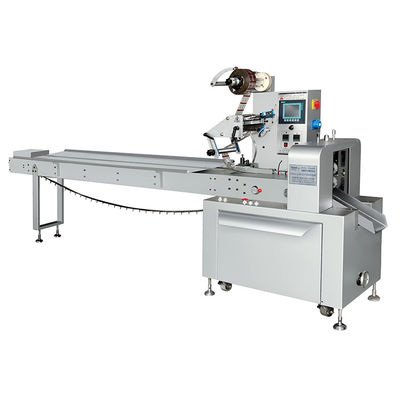

Automatic Candy Packaging Machine 4000*950*1450 mm Friendly Operational Interface

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE / ISO9001
Model Number HTL-280B
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details wooden case package
Delivery Time 60days
Payment Terms D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 Set/Sets per Year
Product Details
Type Packaging Line Condition New
Power 2.5kw Voltage 380V 50HZ
Dimension(L*W*H) 4000*950*1450 Mm Weight 650KG
Product Size (mm) L: 40-300, W: 20-70, H:3-30 Production Capacity Max 150-350 Bags/min
High Light

candy pillow pack machine


candy roll wrapping machine

Leave a Message
Product Description


Automatic feeding conveyor and packing machine






1. Dual frequency transformer (option for servo motor), instant bag length setting and cutting without film feeding test run, saving in time and film.

2. Friendly operational interface, easy to set up parameters.

3. Self trouble shooting function, easy to identify.

4. High sensible photoelectrical tracking system, digital setup for positioning and precisely cutting and sealing, no jaw-knife cut rejects.

5. Intependent PID temperature control, suits for all types of packaging materials/

6. High sanitation standard, stable performence, easy for maintenance.

7. All controls by program software, wasy for upgrade.

8. All the controls are achieved by softare, convenient for function adjusting and upgrading.




The machine is suitable for packing the regular shape products in box or tray such as moon-cake, popping-rice-cake, pie, chocolate, candy, bread, instant noodle, biscuits, pills, groceries, and industrial parts.






1. With optional air filling and printer device (can be choosed);

2. For different specifications of the machines, choose from: HTL- 280B, HTL-280C, HTL-280D, HTL-280E.



Model HTL-280B HTL-280C HTL-280D HTL-280E
Film width Max.280mm Max.240mm Max.180mm
Bag length 90-220/150-330mm 65-190mm/120-280mm 90-220mm 50-115/45-90mm
Bag width 50-140mm 30-110mm 30-80mm
Product height Max.40mm Max.55mm Max.35mm
Rewind diameter Max.280mm
Packing speed 50-250bags/min 40-280bags/min 60-350bags/min
Voltage 220V/380V 50HZ
Power 2.5KW
Dimension (L)4000 *(W)950*(H)1450mm
Total weight 650kg



Our Services


confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.


1,  When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2,  In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.  From the date of the Buyer receipt the machines, free warrant for 12 months.
