Automatic Bubble Gum Cutting And Packing Machine Horizontal CE ISO9001

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL-D808
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Condition New Certification CE, ISO9001:2008
Driven Type Electric Dimension(L*W*H) 2900 L X 1070 W X 1670H(mm)
Product Name Bubble Gum Packing Machine Cut And Pillow Wrap Machine Output 800-1200 Pcs/min.
High Light

candy processing equipment

,

candy processing machine

Leave a Message
Product Description



Horizontal automatic bubble gum cutting and packing machine price



This Candy cut & wrap machine in pillow / flow pack style is suitable for soft milk candies, toffees, chews and gum products.

It is equipped with 5 servo motors, 2 pieces of converter motors, ELAU motion controller and HMI system are employed

A) Special Features :

- Independent servo drive for shaping device;

- Servo drive for feeding chain and rotary knife;

- Servo drive for longitudinal seal;

- Servo drive for horizontal seal;

- Servo drive for a pair of feeding rollers;

- Pneumatic core locking;

- Assistance device for film run;

- Centralized lubrication.

B) Output : 700 - 1000pcs/min, depending on product size .

e.g: cut length 30 – 40mm , output is over 800pcs/min;

Cut length 60mm , output is 700 -800pcs/min.

C) Product measurements

- Length: 10-60mm (can be customized)

- Width: 10-25mm

- Thickness: 3-15mm

D) Connected load :9KW

E) Utilities

- Compressed air consumption: 4L/min

- Compressed air pressure: 0.4-0.6Mpa

F) Wrapping materials

- Heat sealable foil

- PP film

G) Material dimensions

- Reel dia.: 330mm

- Reel width: 60-100mm

- Core dia.: 76mm

H) Machine Dimension: 2900 L x 1070 W x 1670H(mm)

I) Machine Weight: 2500kgs

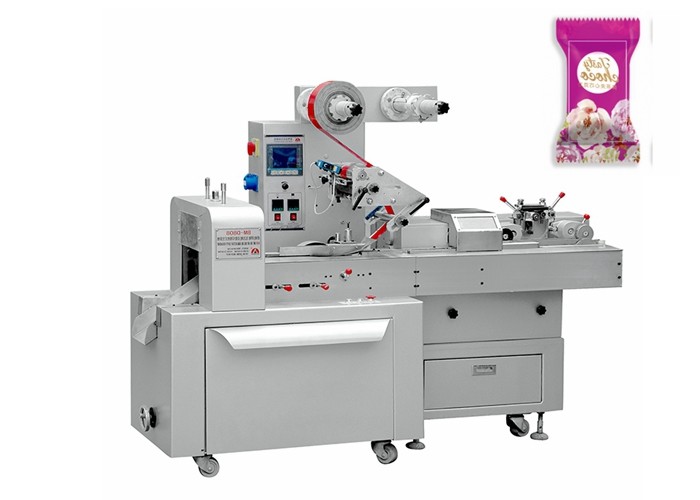

Automatic Bubble Gum Cutting And Packing Machine Horizontal CE ISO9001 0Automatic Bubble Gum Cutting And Packing Machine Horizontal CE ISO9001 1
