Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine

  • Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine
  • Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine
Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Application Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Condition New
Type Grinder Product Type Wheat Flour
Voltage Customized Dimension(L*W*H) 650x570x1240mm
High Light

candy manufacturing machine

,

hard candy making equipment
Leave a Message
Product Description

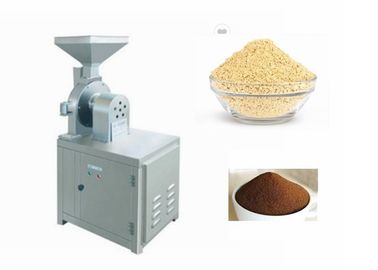

Sugar grinding machine,nescafe tea coffee machine



Sugar grinding machine,nescafe tea coffee machine, 304 stainless steel





Equipment principle



The universal pulverizer uses the high-speed relative motion of the movable sprocket and the fixed sprocket to make the pulverized material crushed by the combined action of tooth impact, friction and material impact. The machine has simple structure, firmness, stable operation and good pulverization effect. The pulverized material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing the mesh screen with different apertures, and the machine is all stainless steel.



Model HTL-180 HTL-20B HTL-30B HTL--40B HTL--60B
Capacity(kg/h) 5-30 60-150 100-300 160-800 300-1500
Spindle rotation speed(r/min) 5300 5200 4500 3800 2600
Feeding granularity(mm) ≤10 ≤10 ≤10 ≤10 ≤10
Crushing granularity(mesh) 12-120 12-120 12-120 12-120 12-120
Crushing motor(kw) 2.2 4 5.5 7.5 22
Dimensions(LxWxH)mm 520x510x1000 650x570x1240 700x670x1370 900x800x1550 900x900x1880



Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine 0

Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine 1

Customized Voltage Sugar Grinding Machine , Nescafe Tea Coffee Machine 2
