Automatic Ball Lollipop Bunch Twist Plastic Wrapping Machine 1 Year Warranty

Place of Origin Jiangsu, China (Mainland)
Brand Name Haitel
Certification CE ISO9001
Model Number HTL
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Wooden case packing according to your demand
Delivery Time Shipped in 45 work days after payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 Piece/Pieces per Month
Product Details
Warranty 1 Year Packaging Material Plastic
Application Food Voltage 380V/50Hz
Weight 2000kg Material Stainless Steel
High Light

candy processing equipment

,

candy processing machine

Leave a Message
Product Description

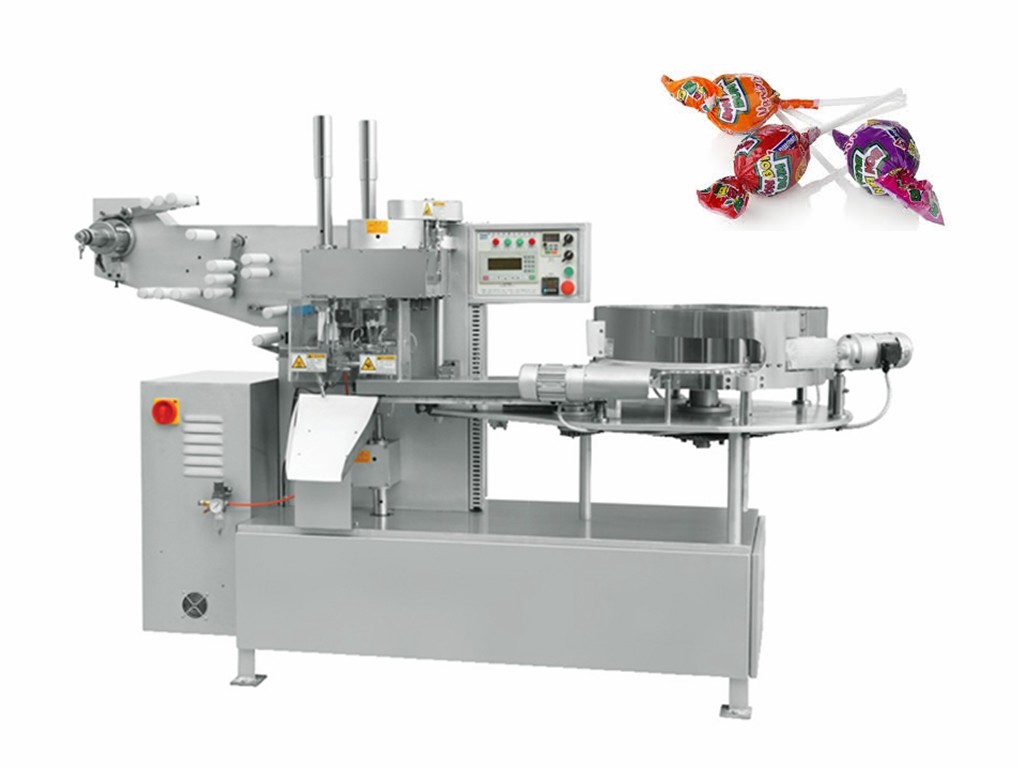

Automatic Ball Lollipop Bunch Twist Plastic Wrapping Machine



Description:

The automatic lollipop packing machine is designed for high speed packing lollipop into double twist. Frequency converter for speed adjustment; Parameter setting and paper cutting adjustment is achieved by operator-machine interface. It is of the function of automatic running and compensating, double twisting and healing of paper as well as parameter display during running.



Feature:

Reasonable design, compact structure and steady and reliable performance function.

Easy operation and maintenance.

Automatic paper running, automatic paper compensation, electromagnetic shaker feeding

system,automatic candy feeding, and automatic single twist sealing.

Definite speed adjustment through the frequency converter.

Automatically photo mark tracking function to cut a whole image on the paper.

No candy no paper design.

An anti-static system is fixed on the machine, to ensure paper feeding smoothly.

Long life rotating cutter design.

A slideway is designed for packing head, easy to slide out and maintenance.





Main technical parameters:

Packing material:               Cellphone, BOPP FILM, composite material and heatable materials.

Width: 110mm; thickness:  0.05~0.1mm

Outer dia.:                           φ320mm

Inner dia.:                            φ76mm

Packing spec.:

Ball:                                    According to customer requirements

Bar:                                    φ3,3.2,3.4,3.6,3.8,4,4.4,5.5mm Capacity: max. 300pcs/min Ø Working condition:

Temperature:                     18~21;humidity: 45~55%;compression air: 0.5~0.6MPa

Power:                                9.4KW

Overall size:                      3180 x 1800 x 2010mm (L×W×H)

Weight:                               1500kg



Picture shows

Automatic Ball Lollipop Bunch Twist Plastic Wrapping Machine 1 Year Warranty 0

Certification

Automatic Ball Lollipop Bunch Twist Plastic Wrapping Machine 1 Year Warranty 1



Our Service

1. One year quality guarantee for the machine
2. Provide the complete service from installation, production, debugging, staff training.
3. Provide the permanent components, technology support, quick response to after-sales service.
