Fully Automatic Snack Bar Production Line Customized Voltage Convenient Maintenance
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | Haitel |
| Certification | CE ISO9001 |
| Model Number | HTL-2200 |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | wooden case package |
| Delivery Time | 60days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15 Piece/Pieces per Month |
Product Details
| Warranty | Snack Food Factory, Bakery | Material | 304 Stainless Steel |
|---|---|---|---|
| Voltage | 220V/380V/Customized | Power Consumption | 10 Kw/h |
| Capacity(kg/h) | Hollow Core:25-30;Poured Core:50-60 | Dimension | 3400*1700*2500mm |
| After-sales Service Provided | Engineers Available To Service Machinery Overseas | Type | Fully Automatic |
| High Light | snack food making machine,snack food processing equipment |
||
Product Description

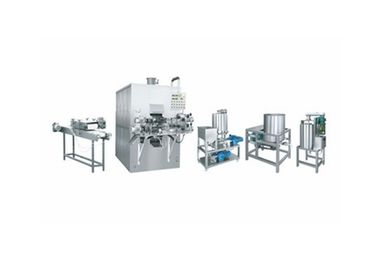

HTL-2200 Automatic Center Filled Egg Roll / Wafer Stick Maker Toaster Machine
Main producing process:
Mixing materials → Filling jam or chocolate → Roller forming → Cooling→ Packing
Characteristics
- 1) The Model HTL-2200 Machine is a domestic new-generation and fully-automatic production line, researched and developed with Japanese top-notch technology, to produce hollow-core stick. The production line is made up of a beating machine for raw and semi-finished materials, a curing main machine, two conveyors, two slurry-poured machines and a conveyer belt.
- 2) Product processing:According to the prescription, raw materials are placed into the mixing machine to be stirred into even powdered slurry, and then conveyed onto the heated wheel hub in the baking machine. After baking, the soft bar is scraped by a scraper and put in reeling shaft to circle into a bar shape. And cut into a needed length to be collected in the conveyer belt, through grooved rails.
Main specifications
| Diameter of wheel hub(mm) | 2000 | Type |
| gas consumption (kg/h) | 4 | HTL-2200 |
| power consumption (kw/h) | 10 | |
| production capacity (kg/h) | hollow core 25-30mm; poured core 50-60mm | |
| dimension (L*W*H) | 3400*1700*2500mm | |
| weight (T) | 5 |
Spare parts (free)
ITEM |
Quantity |
| Egg roll mandril specification φ8 mm | 1 |
| Egg roll mandril specification φ10mm | 1 |
| Egg roll mandril specification φ12 mm | 1 |
| Egg roll mandril specification φ16 mm | 1 |
| Temperature controllers | 2 |
| Thermocouples | 1 |
Our Services
Pre-sale
confirm machine type: Negotiate with clients to seclect the correct machine according to customers‘ requirment.
Quote and Sign firm contract: After confirm with customers with all details, such as payment terms,model, delivery time,send official quotation to clients.
After-sale
- 1, When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
- 2, In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
- 3. From the date of the Buyer receipt the machines, free warrant for 12 months.
